Palit RTX 2060 Super GamingPro OC Thermal Pad Sizes (1mm, 2mm, 2.25mm)

Is your Palit GeForce RTX 2060 SUPER GamingPro OC 8GB running hotter than usual or are its fans spinning up loudly? Over time, factory thermal pads can degrade, leading to reduced cooling efficiency, performance throttling, and increased noise. Upgrading to high-quality Fehonda thermal pads with the correct thicknesses can restore and even enhance your GPU's thermal performance.

This guide provides the specific thermal pad dimensions and thicknesses required for your Palit GeForce RTX 2060 SUPER GamingPro OC 8GB, ensuring optimal contact and heat transfer.

Critical Thermal Pad Requirements for Palit RTX 2060 SUPER GamingPro OC 8GB:

To effectively service your graphics card, you will need Fehonda thermal pads in three different thicknesses: 1mm, 2mm, and 2.25mm. It's recommended to get at least one 85x45mm pack of Fehonda thermal pads for each of these required thicknesses to ensure you have enough material.

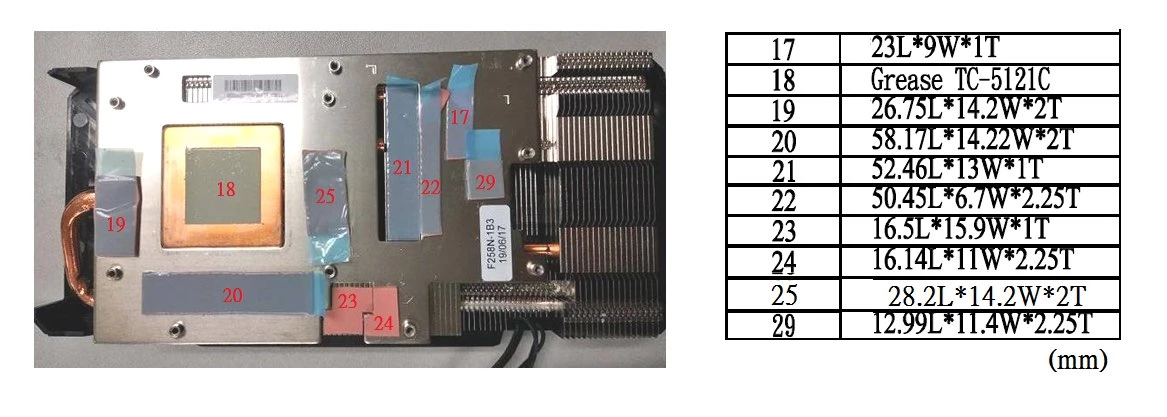

Based on detailed component measurements for the Palit RTX 2060 SUPER GamingPro OC (often identified by model numbers like NE6206SS19P2-1062A), here are the specific pad sizes you'll need:

• GPU Core (Location 18): This is the GPU die itself. Do NOT use a thermal pad here. Apply a quality thermal compound (e.g., IC-Grease TC-S121C or similar) directly to the die.

• Memory (VRAM) & VRM Thermal Pads:

  • Location 17: 23mm x 9mm x 1mm
  • Location 19: 26.75mm x 14.2mm x 2mm
  • Location 20: 58.17mm x 14.22mm x 2mm
  • Location 21: 52.46mm x 13mm x 1mm
  • Location 22: 50.45mm x 6.7mm x 2.25mm
  • Location 23: 16.5mm x 15.9mm x 1mm
  • Location 24: 16.14mm x 11mm x 2.25mm (Note: Listed as "16x14x11x2.25mm" in some diagrams, interpreted from common notation and table)
  • Location 25: 28.2mm x 14.2mm x 2mm
  • Location 29: 12.99mm x 11.4mm x 2.25mm

(Please refer to the component layout diagram for your specific card when disassembling to match these locations accurately.)

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now (Ensure you add 1mm, 2mm, and 2.25mm thicknesses to your cart)

Why Choose Fehonda for Your Palit RTX 2060 SUPER GamingPro OC?

Upgrading a performance-oriented card like the RTX 2060 SUPER GamingPro OC requires reliable thermal interface materials. Fehonda thermal pads offer:

• ✅ Premium Quality: Manufactured with high-purity, thermally conductive materials designed to efficiently transfer heat from your GPU's critical components (VRAM, VRMs) to the heatsink.
• ✅ Enhanced Cooling: By replacing worn or inefficient stock pads, Fehonda pads can significantly lower operating temperatures, leading to more stable performance, reduced fan noise, and potentially better overclocking headroom.
• ✅ Expertise in Thermal Solutions: Fehonda specializes in thermal management, ensuring their products meet the demands of modern, power-hungry graphics cards like the RTX 2060 SUPER.
• ✅ Versatile Solutions for Precise Needs: Offering various thicknesses, including the specific 1mm, 2mm, and 2.25mm required for the Palit RTX 2060 SUPER GamingPro OC, allows for a tailored and effective cooling upgrade.

Important Steps & Considerations for Your GPU Thermal Pad Replacement:

1. Verify Your Card Model: Ensure your card is indeed the Palit GeForce RTX 2060 SUPER GamingPro OC 8GB, as thermal pad layouts can vary even between cards with the same GPU chipset.
2. Gather Your Tools: Besides the thermal pads and thermal compound, you'll need appropriate screwdrivers, non-metallic prying tools (spudgers), isopropyl alcohol (90%+), and lint-free cloths. Anti-static precautions (like a wrist strap) are highly recommended.
3. Consult a Teardown Guide: Search for a reputable video or written guide for disassembling your specific Palit RTX 2060 SUPER GamingPro OC model. This will help you avoid damaging components.
4. Careful Disassembly: Take photos as you go to remember screw locations and cable routing. Handle all parts gently.
5. Thorough Cleaning: Once disassembled, carefully remove all old thermal pads and thermal paste. Clean the GPU die, VRAM chips, VRMs, and the heatsink contact surfaces with isopropyl alcohol and lint-free cloths until spotless.
6. Precise Pad Application: Cut your new Fehonda thermal pads to the exact dimensions listed above. Remove the protective film from one side, apply the pad to the component, then remove the film from the other side before reattaching the heatsink. Using the correct thickness for each location is paramount. Incorrect thickness can lead to poor contact, insufficient cooling, or even damage due to uneven pressure.
7. Reassembly: Carefully reassemble your graphics card, ensuring all cables are reconnected and screws are tightened appropriately (don't overtighten).

Revitalize Your Palit RTX 2060 SUPER GamingPro OC!

By carefully replacing the thermal pads and compound with quality Fehonda products, you can significantly improve your Palit GeForce RTX 2060 SUPER GamingPro OC's cooling, leading to quieter operation, sustained performance, and potentially extending its lifespan.
