Palit RTX 2080 Ti Gaming Pro / OC: Thermal Pad Sizes & Replacement Guide

Why Correct Thermal Pads are Crucial for Your Palit RTX 2080 Ti Gaming Pro / OC

Thermal pads are critical components within your graphics card's cooling system. They act as a thermal interface, filling microscopic air gaps and ensuring efficient heat transfer from vital heat-generating components—such as VRAM chips, VRMs (Voltage Regulator Modules), and other PCB elements—to the heatsink and backplate. Proper heat dissipation is paramount to prevent overheating.

Over time, original thermal pads can degrade, dry out, lose their thermal conductivity, or become overly compressed, significantly reducing their cooling effectiveness. Using incorrect sizes or deteriorated pads can lead to severe issues:

• Component Overheating: Sensitive parts of your GPU can exceed their safe operating temperatures, potentially causing instability, visual artifacts, or even permanent hardware damage.
• Performance Throttling: To protect itself from excessive heat, your GPU will automatically reduce its clock speeds (a process known as thermal throttling). This results in noticeable drops in frame rates and a compromised gaming or professional experience.
• Reduced GPU Lifespan: Continuous exposure to high temperatures can accelerate the degradation of electronic components, thereby shortening the overall lifespan of your valuable graphics card.

Replacing old or inadequate thermal pads with new ones of the correct, precise dimensions and high quality is a vital maintenance procedure for any Palit RTX 2080 Ti Gaming Pro / OC owner looking to maximize performance, stability, and longevity.

Accurate Thermal Pad Sizes for Palit GeForce RTX 2080 Ti Gaming Pro / OC

Achieving optimal thermal contact and efficient heat dissipation on your Palit RTX 2080 Ti Gaming Pro / OC requires using thermal pads cut to very specific dimensions and of varying thicknesses. This model, in particular, utilizes a diverse range of thicknesses from 0.5mm up to 2.25mm.

Detailed Thermal Pad Dimensions and Thicknesses:

Here is the comprehensive list of specific dimensions (in millimeters) needed for your GPU:

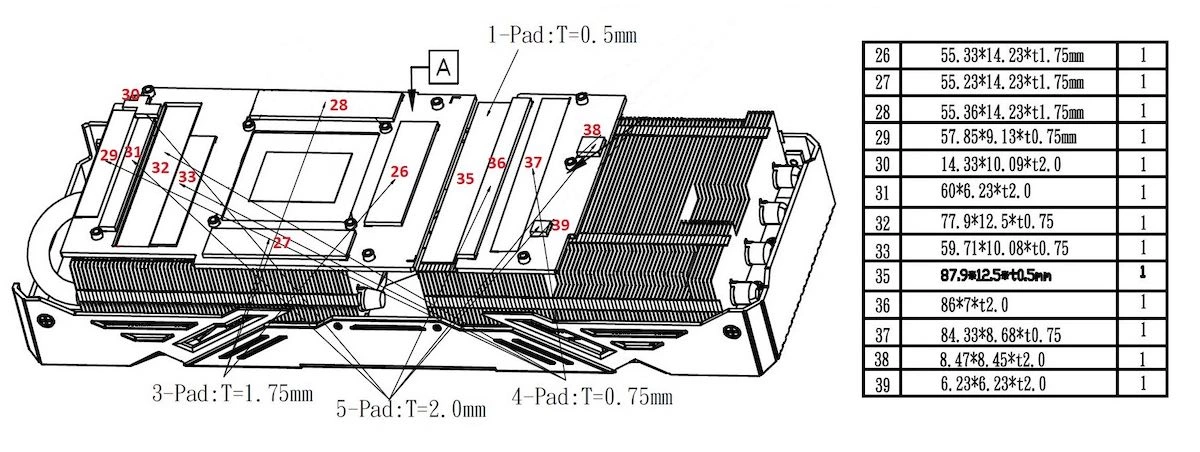

A. Front side thermal pads / Heatsink:

• Pad (26): 55.33mm × 14.23mm × 1.75mm
• Pad (27): 55.23mm × 14.23mm × 1.75mm
• Pad (28): 55.36mm × 14.23mm × 1.75mm
• Pad (29): 57.85mm × 9.13mm × 0.75mm
• Pad (30): 14.33mm × 10.09mm × 2.0mm
• Pad (31): 60mm × 6.23mm × 2.0mm
• Pad (32): 77.9mm × 12.5mm × 0.75mm
• Pad (33): 59.71mm × 10.08mm × 0.75mm
• Pad (35): 87.9mm × 12.5mm × 0.5mm
• Pad (36): 86mm × 7mm × 2.0mm
• Pad (37): 81.33mm × 8.68mm × 0.75mm
• Pad (38): 8.47mm × 8.45mm × 2.0mm
• Pad (39): 6.23mm × 6.23mm × 2.0mm

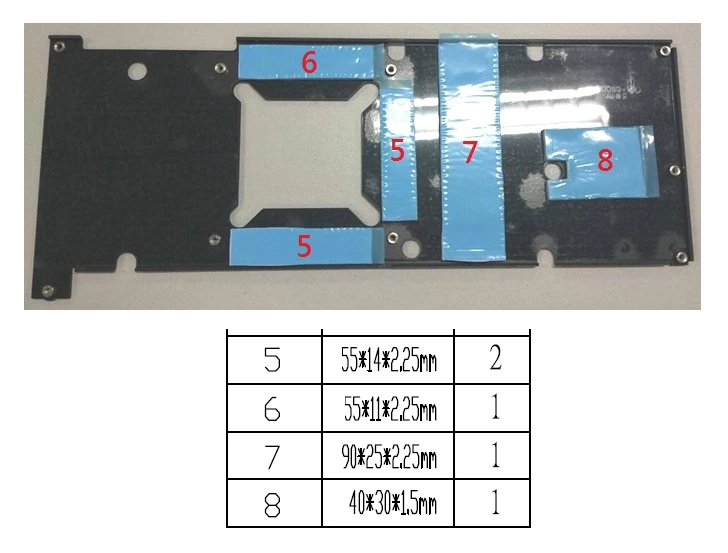

B. Backside thermal pads / Backplate:

• Pad (5): 55mm × 14mm × 2.25mm (Requires 2 pieces)
• Pad (6): 55mm × 11mm × 2.25mm
• Pad (7): 90mm × 25mm × 2.25mm
• Pad (8): 40mm × 30mm × 1.5mm

Important Purchasing Note: Due to the extensive list and variety of thicknesses (0.5mm, 0.75mm, 1.5mm, 1.75mm, 2.0mm, 2.25mm), you will need to purchase thermal pad sheets of each required thickness (e.g., Fehonda 85x45mm sheets or larger, depending on availability and the total area of pads needed) and meticulously cut them to the precise dimensions listed above. Ensure you have enough material for all specified pieces, especially where multiple identical pieces are required or for larger pads.

Why Choose Fehonda Thermal Pads for Your GPU Upgrade?

When selecting replacement thermal pads for a high-performance card like the Palit RTX 2080 Ti Gaming Pro / OC, the quality of the chosen material is paramount. Fehonda thermal pads are a highly recommended option due to their recognized advantages:

• Premium Quality: Fehonda pads are manufactured from high-grade silicone and other thermally conductive materials, ensuring excellent heat transfer capabilities and long-term durability.
• Enhanced Cooling: Specifically engineered to optimize thermal conductivity, these pads help significantly lower the operating temperatures of your GPU's critical components.
• Expertise: Fehonda specializes in thermal interface solutions, meaning their products are developed with a comprehensive understanding of the demanding cooling requirements of modern GPUs.
• Versatile Solutions: They offer a wide range of pad thicknesses and sheet sizes, enabling you to acquire the necessary materials for a precise and effective thermal pad replacement according to the detailed specifications for your card.

Investing in quality thermal pads like those from Fehonda is an investment in the continued health, stability, and peak performance of your graphics card.

Tips for Replacing Your GPU Thermal Pads

Replacing GPU thermal pads is a delicate and meticulous operation that requires patience, precision, and care. If you are not comfortable disassembling your graphics card, it is strongly advisable to seek professional help from an experienced technician. If you choose to proceed yourself:

1. Prepare Your Workspace and Tools: You will need a set of precision screwdrivers, your new Fehonda thermal pads (of all required thicknesses: 0.5mm, 0.75mm, 1.5mm, 1.75mm, 2.0mm, 2.25mm), high-purity isopropyl alcohol (90% or higher) for cleaning, lint-free cloths or swabs, and potentially non-metallic prying tools. An anti-static wrist strap is crucial for safety.
2. Safety First: Work in a clean, well-lit, and static-free environment. Ensure you are properly grounded before handling any sensitive electronic components to prevent electrostatic discharge (ESD) damage.
3. Consult a Specific Disassembly Guide: Search for a detailed disassembly video or step-by-step pictorial guide for your exact Palit GeForce RTX 2080 Ti Gaming Pro / OC model. Cooler designs and screw placements can be intricate and vary even between sub-models. Taking photographs during disassembly is highly recommended for reference during reassembly.
4. Handle Components Meticulously: Keep careful track of all screws, noting their sizes and original locations. Some screws might be of different lengths or types.
5. Thorough Cleaning: Once disassembled, carefully remove all old thermal pads. Meticulously clean any residue from the chips (VRAM, VRMs, etc.) and the heatsink/backplate contact points using isopropyl alcohol. Ensure all surfaces are perfectly clean and dry before applying new pads. If you are also re-applying thermal paste to the GPU die, clean that surface thoroughly as well.
6. Cut and Apply New Pads: With extreme precision, cut your new Fehonda thermal pads to the exact dimensions (e.g., 55.33mm × 14.23mm) specified above, using the correct thickness for each specific location. Remove the protective film from one side of the pad, carefully apply it to the component, then remove the film from the other side just before reattaching the heatsink or backplate.
7. Reassemble with Care: Ensure all components are correctly aligned. Remount the heatsink and backplate with even pressure. Typically, screws should be tightened gently in a crisscross pattern where applicable to distribute pressure evenly. Do not overtighten, as this can damage the PCB or components.

Disclaimer: Disassembling your graphics card will likely void its warranty and carries an inherent risk of damaging components if not performed correctly and with great care. Proceed entirely at your own risk.

Where to Purchase Fehonda Thermal Pads

For genuine, high-quality Fehonda thermal pads suitable for the intricate requirements of your Palit GeForce RTX 2080 Ti Gaming Pro / OC, online marketplaces like AliExpress are a common and accessible source.

>> FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now <<

Always ensure you are purchasing from reputable sellers. Double-check that you are ordering all the necessary thicknesses (0.5mm, 0.75mm, 1.5mm, 1.75mm, 2.0mm, and 2.25mm) in sufficient sheet sizes or quantities to cover all the dimensions listed for your specific card.

Conclusion: Preserve and Enhance Your Palit RTX 2080 Ti Gaming Pro / OC's Performance

Maintaining optimal operating temperatures is absolutely fundamental for achieving the best possible performance and ensuring the long-term reliability of your Palit GeForce RTX 2080 Ti Gaming Pro / OC. By meticulously replacing the stock thermal pads with correctly sized and high-quality replacement pads, such as those offered by Fehonda, using the comprehensive list of dimensions provided, you can significantly enhance your GPU's cooling efficiency. This helps prevent performance degradation due to thermal throttling and allows you to enjoy a consistently smoother and more dependable high-end computing or gaming experience.
