Colorful GeForce RTX 3060 Ti NB LHR V: Essential Thermal Pad Replacement Guide

Why Correct Thermal Pads are Crucial for Your Colorful RTX 3060 Ti NB LHR V

Thermal pads are vital for efficiently transferring heat away from critical components on your graphics card, such as the VRAM (Video Random Access Memory) modules and VRMs (Voltage Regulator Modules), to the heatsink assembly. Proper heat dissipation is essential for preventing overheating and maintaining stability.

Using worn-out, incorrectly sized, or low-quality thermal pads can lead to several significant issues:

• Increased Operating Temperatures: This can cause thermal throttling, where your GPU reduces its clock speeds to prevent heat damage, thereby lowering performance.
• Reduced Performance and Stability: You might experience unexpected frame drops, system crashes, or visual artifacts during intensive gaming sessions or creative workloads.
• Shortened GPU Lifespan: Continuous exposure to high temperatures can accelerate the degradation of electronic components, potentially reducing the overall lifespan of your graphics card.

Replacing thermal pads with new, correctly-sized, and high-quality ones is an important maintenance step to keep your Colorful RTX 3060 Ti NB LHR V running coolly and efficiently.

Accurate Thermal Pad Sizes for Colorful GeForce RTX 3060 Ti NB LHR V

For the Colorful GeForce RTX 3060 Ti NB LHR V, the good news is that this card reportedly uses 2mm thermal pads all over its surface where pads are required. This simplifies the selection of thickness.

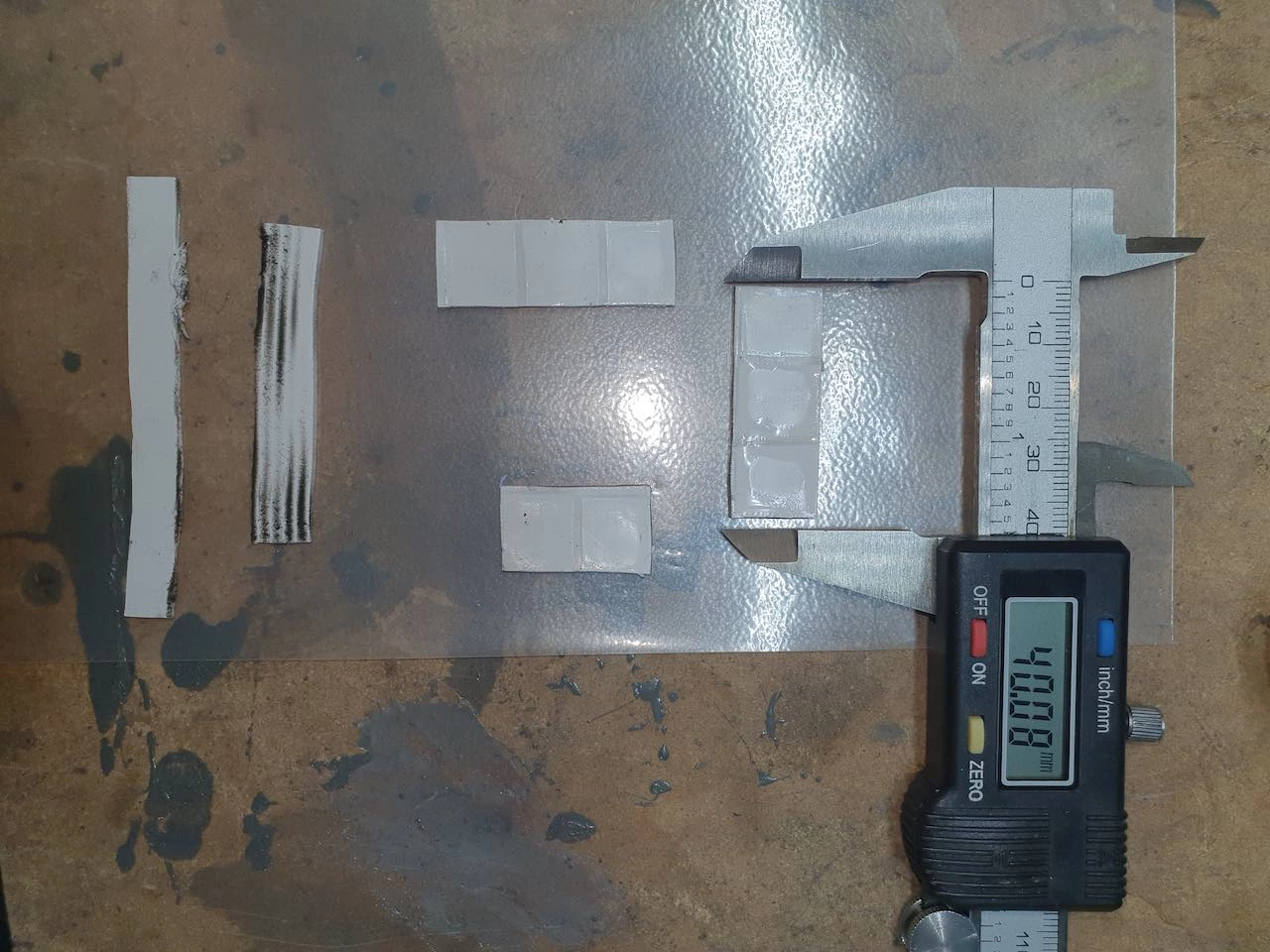

Specific Pad Dimensions (All 2mm Thick):

You will need to cut the following pieces, all with a 2mm thickness:

VRAMs:

• One (1) piece: 40mm x 15mm x 2mm
• One (1) piece: 40mm x 15mm x 2mm
• One (1) piece: 25mm x 15mm x 2mm

Pads on the side (likely VRMs or other components):

• One (1) piece: 73mm x 7mm x 2mm
• One (1) piece: 52mm x 10mm x 2mm

Important Note on Coverage: It's mentioned that for optimal VRAM cooling, the pads might need to be cut slightly longer than the component itself to ensure full coverage of the entire memory module. When measuring and cutting, consider this to maximize contact and heat transfer.

Purchasing Recommendation:

One package of 85mm x 45mm x 2mm thermal pad sheet, such as those offered by Fehonda, should provide enough material to cut all the individual pieces listed above for this GPU.

Why Choose Fehonda Thermal Pads?

When it's time to replace the thermal pads on your Colorful RTX 3060 Ti NB LHR V, selecting high-quality replacements is crucial for optimal results. Fehonda thermal pads are a recommended choice due to their recognized benefits:

• Premium Quality: Fehonda pads are manufactured from high-grade materials, ensuring excellent thermal conductivity and durability for sustained and effective cooling performance.
• Enhanced Cooling: Specifically designed to improve heat transfer, these 2mm pads will help keep your GPU's critical components at lower temperatures, contributing to stable and consistent performance.
• Expertise: Fehonda specializes in thermal solutions, bringing dedicated knowledge and precision to their product development and specifications.
• Versatile Solutions: Offering thermal pads in various sizes and thicknesses, including sheets like the 85x45x2mm option, makes it easy to get the right materials for your specific GPU upgrade needs.

By choosing Fehonda, you're investing in the longevity and peak operational capability of your Colorful RTX 3060 Ti NB LHR V.

Tips for Replacing Your GPU Thermal Pads

Replacing GPU thermal pads requires care, patience, and attention to detail. If you're unfamiliar with GPU disassembly, consider seeking professional help or watching detailed video guides for your specific Colorful RTX 3060 Ti NB LHR V card model.

1. Preparation: Gather your tools: your new Fehonda 85x45x2mm thermal pad sheet, a precision screwdriver set, non-metallic prying tools (optional, but helpful), high-purity isopropyl alcohol (90%+), and lint-free cloths or swabs. Ensure you work in an anti-static environment by using an anti-static wrist strap.
2. Disassembly: Carefully disassemble your graphics card to access the old thermal pads. This usually involves removing the backplate and the main heatsink assembly. Keep meticulous track of all screws and their original locations; taking photos as you go can be invaluable for reassembly.
3. Remove Old Pads & Clean: Gently remove the old thermal pads from the VRAM modules and any other components. Thoroughly clean the surfaces of these components and the corresponding contact points on the heatsink using isopropyl alcohol and a lint-free cloth to remove any oily residue or debris.
4. Cut and Apply New Pads: Carefully cut your new 2mm thick Fehonda thermal pad sheet into the five required pieces with the dimensions listed above. Remember the tip about potentially making VRAM pads slightly longer for full coverage. Remove the protective film from one side of a pad, apply it to the designated area, then remove the film from the other side. Ensure good contact without excessive pressure.
5. Reapply Thermal Paste (GPU Die): Since you've removed the heatsink, you will also need to clean off the old thermal paste from the GPU die itself and apply a fresh, even layer of new, high-quality thermal paste before reattaching the heatsink.
6. Reassembly: Carefully reassemble your graphics card, ensuring all connectors are properly seated and screws are tightened appropriately (snug, but not over-tightened, usually in a crisscross pattern for even pressure).
7. Testing: Install the graphics card back into your PC and monitor its temperatures under load (e.g., using gaming benchmarks or stress tests) to ensure that the cooling has improved and everything is operating correctly.

Disclaimer: Disassembling your graphics card can void its warranty and carries an inherent risk of damage if not performed correctly. Proceed at your own risk.

Where to Purchase Fehonda Thermal Pads

Ready to provide your Colorful GeForce RTX 3060 Ti NB LHR V with an essential cooling upgrade? You can find Fehonda Thermal Pads directly on AliExpress. The 85x45x2mm sheet is ideal for this particular GPU.

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now

Always ensure you purchase from reputable sellers to guarantee you receive genuine, high-quality thermal pads.

Conclusion: Keep Your Colorful RTX 3060 Ti NB LHR V Running Cool and Efficiently

Using the correct 2mm thick thermal pads, cut to the specified dimensions, is a critical step in maintaining the health and performance of your Colorful GeForce RTX 3060 Ti NB LHR V. Opting for high-quality Fehonda thermal pads will help ensure superior cooling for your VRAM and other components, leading to more stable performance and contributing to the longevity of your graphics card.
