Why Correct Thermal Pads are Crucial for Your Gainward RTX 3060 Ti Ghost
Thermal pads are vital for efficiently transferring heat away from critical components on your graphics card, such as the VRAM (Video Random Access Memory) modules, VRMs (Voltage Regulator Modules), and other sensitive ICs, to the heatsink assembly. Proper heat dissipation is essential for preventing overheating and maintaining stability.
Using worn-out, incorrectly sized, or low-quality thermal pads can lead to several significant issues:
- Increased Operating Temperatures: This can cause thermal throttling, where your GPU reduces its clock speeds to prevent heat damage, thereby lowering performance.
- Reduced Performance and Stability: You might experience unexpected frame drops, system crashes, or visual artifacts during intensive gaming sessions or creative workloads.
- Shortened GPU Lifespan: Continuous exposure to high temperatures can accelerate the degradation of electronic components, potentially reducing the overall lifespan of your graphics card.
Replacing thermal pads with new, correctly-sized, and high-quality ones is an important maintenance step to keep your Gainward RTX 3060 Ti Ghost running coolly and efficiently.

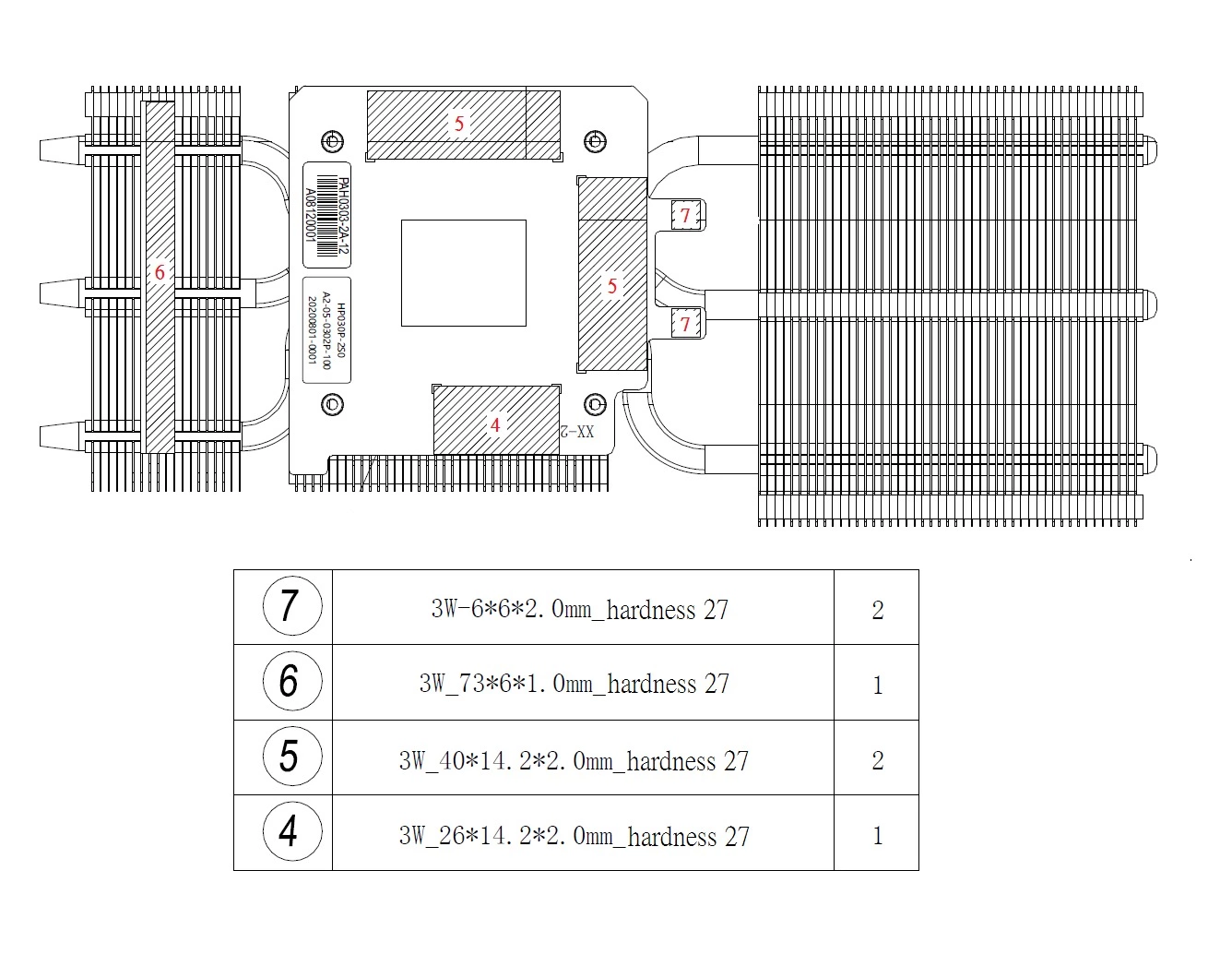

Accurate Thermal Pad Sizes for Gainward GeForce RTX 3060 Ti Ghost
For the Gainward GeForce RTX 3060 Ti Ghost, you will need to cut specific pad sizes from sheets of 1mm and 2mm thick thermal pad material.
Specific Pad Dimensions:
- Pad 7: Two (2) pieces, each 6mm x 6mm x 2mm
- Pad 6: One (1) piece, 73mm x 6mm x 1mm
- Pad 5: Two (2) pieces, each 40mm x 14.2mm x 2mm
- Pad 4: One (1) piece, 26mm x 14.2mm x 2mm
Purchasing Recommendation:
It is recommended to use:
- One (1) sheet of 85mm x 45mm x 1.0mm thermal pad (for Pad 6).
- One (1) sheet of 85mm x 45mm x 2.0mm thermal pad (for Pads 4, 5, and 7).
These two sheets should provide sufficient material to cut all the individual pieces listed above.
Why Choose Fehonda Thermal Pads?
When it's time to replace the thermal pads on your Gainward RTX 3060 Ti Ghost, selecting high-quality replacements is crucial for optimal results. Fehonda thermal pads are a recommended choice due to their recognized benefits:
- Premium Quality: Fehonda pads are manufactured from high-grade materials, ensuring excellent thermal conductivity and durability for sustained and effective cooling performance.
- Enhanced Cooling: Specifically designed to improve heat transfer, these pads will help keep your GPU's critical components at lower temperatures, contributing to stable and consistent performance.
- Expertise: Fehonda specializes in thermal solutions, bringing dedicated knowledge and precision to their product development and specifications.
- Versatile Solutions: Offering thermal pads in various sizes and thicknesses, including sheets like the 85x45mm option, makes it easy to get the right materials for your specific GPU upgrade needs.
By choosing Fehonda, you're investing in the longevity and peak operational capability of your Gainward RTX 3060 Ti Ghost.
Tips for Replacing Your GPU Thermal Pads
Replacing GPU thermal pads requires care, patience, and attention to detail. If you're unfamiliar with GPU disassembly, consider seeking professional help or watching detailed video guides for your specific Gainward RTX 3060 Ti Ghost card model.
- Preparation: Gather your tools: your new Fehonda thermal pad sheets (85x45x1mm and 85x45x2mm), a precision screwdriver set, non-metallic prying tools (optional, but helpful), high-purity isopropyl alcohol (90%+), and lint-free cloths or swabs. Ensure you work in an anti-static environment by using an anti-static wrist strap.
- Disassembly: Carefully disassemble your graphics card to access the old thermal pads. This usually involves removing the backplate and the main heatsink assembly. Keep meticulous track of all screws and their original locations; taking photos as you go can be invaluable for reassembly.
- Remove Old Pads & Clean: Gently remove the old thermal pads from all components. Thoroughly clean the surfaces of these components and the corresponding contact points on the heatsink using isopropyl alcohol and a lint-free cloth to remove any oily residue or debris.
- Cut and Apply New Pads: Carefully cut your new Fehonda thermal pad sheets into the required pieces with the dimensions listed above (Pad 7: 6x6x2mm (x2); Pad 6: 73x6x1mm; Pad 5: 40x14.2x2mm (x2); Pad 4: 26x14.2x2mm). Remove the protective film from one side of a pad, apply it to the designated area, then remove the film from the other side. Ensure good contact without excessive pressure.
- Reapply Thermal Paste (GPU Die): Since you've removed the heatsink, you will also need to clean off the old thermal paste from the GPU die itself and apply a fresh, even layer of new, high-quality thermal paste before reattaching the heatsink.
- Reassembly: Carefully reassemble your graphics card, ensuring all connectors are properly seated and screws are tightened appropriately (snug, but not over-tightened, usually in a crisscross pattern for even pressure).
- Testing: Install the graphics card back into your PC and monitor its temperatures under load (e.g., using gaming benchmarks or stress tests) to ensure that the cooling has improved and everything is operating correctly.
Disclaimer: Disassembling your graphics card can void its warranty and carries an inherent risk of damage if not performed correctly. Proceed at your own risk.
Where to Purchase Fehonda Thermal Pads
Ready to provide your Gainward GeForce RTX 3060 Ti Ghost with an essential cooling upgrade? You can find Fehonda Thermal Pads directly on AliExpress. You'll need one 85x45x1.0mm sheet and one 85x45x2.0mm sheet for this GPU.
FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now
Always ensure you purchase from reputable sellers to guarantee you receive genuine, high-quality thermal pads.
Conclusion: Keep Your Gainward RTX 3060 Ti Ghost Running Cool and Efficiently
Using the correct 1mm and 2mm thick thermal pads, cut to the specified dimensions, is a critical step in maintaining the health and performance of your Gainward GeForce RTX 3060 Ti Ghost. Opting for high-quality Fehonda thermal pads will help ensure superior cooling for your components, leading to more stable performance and contributing to the longevity of your graphics card.
