EVGA GeForce RTX 3060 Ti XC GAMING 8GB: Essential Thermal Pad Replacement Guide

Why Correct Thermal Pads are Crucial for Your EVGA RTX 3060 Ti XC GAMING

Thermal pads are vital for efficiently transferring heat away from critical components on your graphics card, such as the VRAM (Video Random Access Memory) modules and VRMs (Voltage Regulator Modules), to the heatsink assembly where it can be dissipated. Proper heat transfer is essential for preventing overheating and maintaining stability.

Using worn-out, incorrectly sized, or low-quality thermal pads can lead to several significant issues:

• Increased Operating Temperatures: This can cause thermal throttling, where your GPU reduces its clock speeds to prevent heat damage, thereby lowering performance.
• Reduced Performance and Stability: You might experience unexpected frame drops, system crashes, or visual artifacts during intensive gaming sessions or creative workloads.
• Shortened GPU Lifespan: Continuous exposure to high temperatures can accelerate the degradation of electronic components, potentially reducing the overall lifespan of your graphics card.

Replacing thermal pads with new, correctly-sized, and high-quality ones is an important maintenance step to keep your EVGA RTX 3060 Ti XC GAMING running coolly and efficiently.

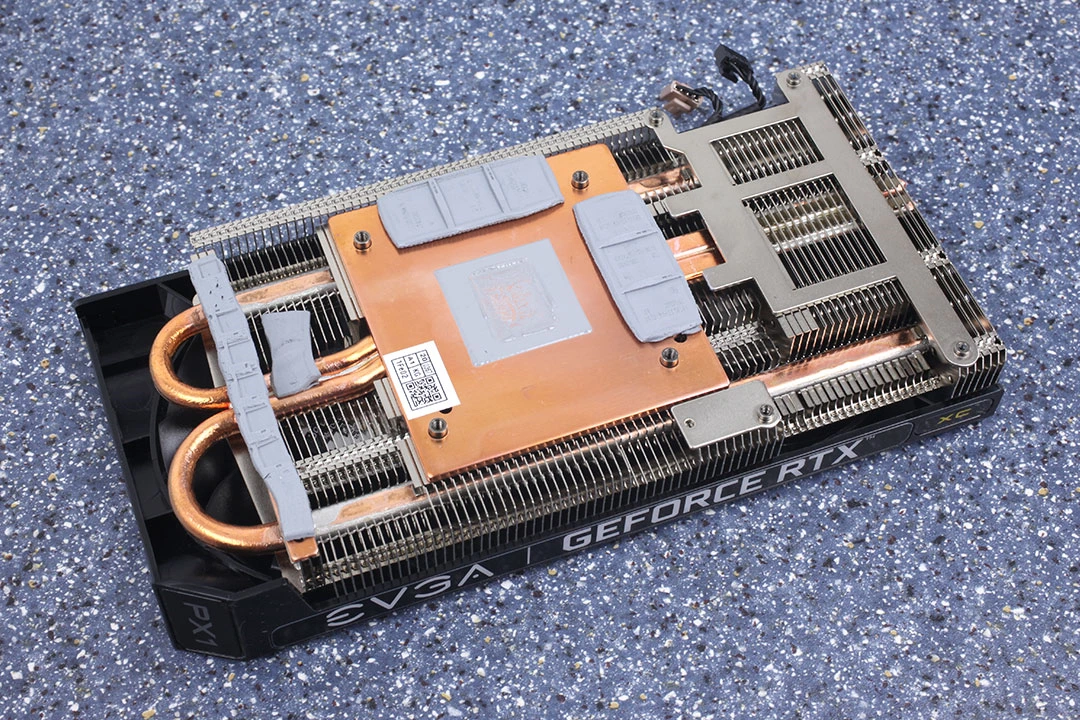

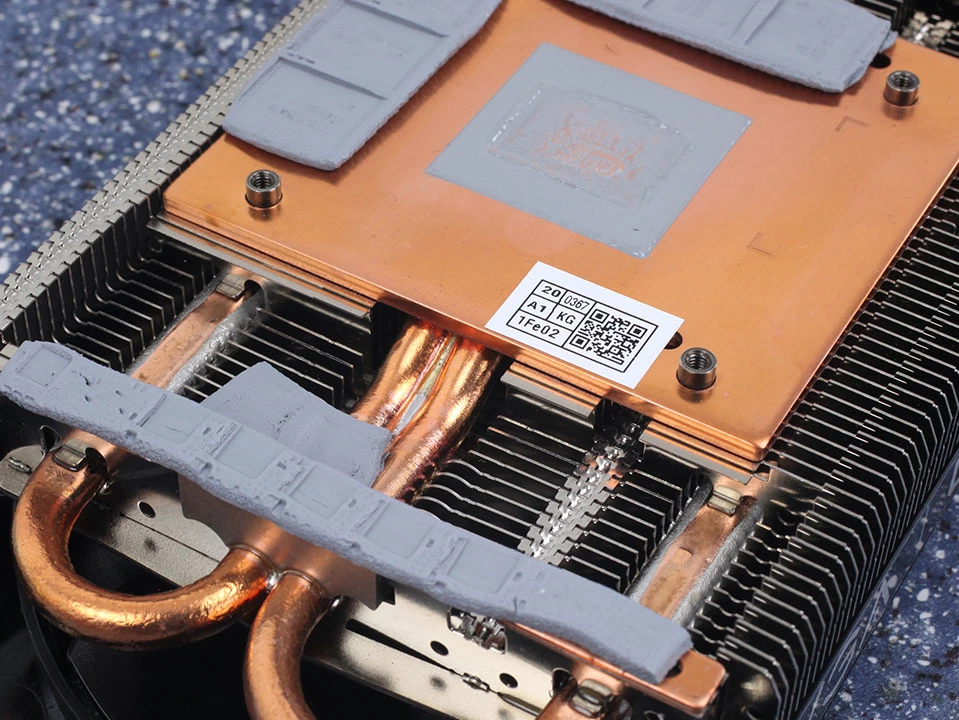

Accurate Thermal Pad Sizes for EVGA GeForce RTX 3060 Ti XC GAMING 8GB

For the EVGA GeForce RTX 3060 Ti XC GAMING 8GB, all required thermal pads are 2mm thick. The specific pieces needed for the VRAM modules can be cut from a larger sheet.

Specific Pad Dimensions (VRAMs):

You will need to cut the following three strips, all with a 2mm thickness:

• Strip #1: One (1) piece, 40mm x 15mm x 2mm
• Strip #2: One (1) piece, 40mm x 15mm x 2mm
• Strip #3: One (1) piece, 25mm x 15mm x 2mm

(Note on an earlier description: While an initial description mentioned "two sets of three modules, each roughly 40x15x2mm," the specific cutting list above is the practical guide for preparing your replacement pads.)**

Purchasing Recommendation:

You can safely replace all these pads by cutting them from a single 85mm x 45mm x 2mm thermal pad sheet, such as those offered by Fehonda. This single sheet provides ample material for all the individual strips listed above.

Why Choose Fehonda Thermal Pads?

When it's time to replace the thermal pads on your EVGA RTX 3060 Ti XC GAMING, selecting high-quality replacements is crucial for optimal results. Fehonda thermal pads are a recommended choice due to their recognized benefits:

• Premium Quality: Fehonda pads are manufactured from high-grade materials, ensuring excellent thermal conductivity and durability for sustained and effective cooling performance.
• Enhanced Cooling: Specifically designed to improve heat transfer, these pads help to keep your GPU's critical components (like VRAM) at lower temperatures, contributing to stable and consistent performance.
• Expertise: Fehonda specializes in thermal solutions, bringing dedicated knowledge and precision to their product development and specifications.
• Versatile Solutions: Offering thermal pads in various sizes and thicknesses, including sheets like the 85x45x2mm option, makes it easy to get the right materials for your specific GPU upgrade needs.

By choosing Fehonda, you're investing in the longevity and peak operational capability of your EVGA RTX 3060 Ti XC GAMING.

Tips for Replacing Your GPU Thermal Pads

Replacing GPU thermal pads requires care, patience, and attention to detail. If you're unfamiliar with GPU disassembly, consider seeking professional help or watching detailed video guides for your specific EVGA RTX 3060 Ti XC GAMING card model.

1. Preparation: Gather your tools: your new Fehonda 85x45x2mm thermal pad sheet, a precision screwdriver set, non-metallic prying tools (optional, but helpful), high-purity isopropyl alcohol (90%+), and lint-free cloths or swabs. Ensure you work in an anti-static environment by using an anti-static wrist strap.
2. Disassembly: Carefully disassemble your graphics card to access the old thermal pads. This usually involves removing the backplate and the main heatsink assembly. Keep meticulous track of all screws and their original locations; taking photos as you go can be invaluable for reassembly.
3. Remove Old Pads & Clean: Gently remove the old thermal pads from the VRAM modules and any other components. Thoroughly clean the surfaces of these components and the corresponding contact points on the heatsink using isopropyl alcohol and a lint-free cloth to remove any oily residue or debris.
4. Cut and Apply New Pads: Carefully cut your new Fehonda thermal pad sheet into the three required strips: two pieces of 40x15mm and one piece of 25x15mm (all from the 2mm thick sheet). Remove the protective film from one side of a pad, apply it to the designated VRAM area, then remove the film from the other side. Ensure good contact without excessive pressure.
5. Reapply Thermal Paste (GPU Die): Since you've removed the heatsink, you will also need to clean off the old thermal paste from the GPU die itself and apply a fresh, even layer of new, high-quality thermal paste before reattaching the heatsink.
6. Reassembly: Carefully reassemble your graphics card, ensuring all connectors are properly seated and screws are tightened appropriately (snug, but not over-tightened, usually in a crisscross pattern for even pressure).
7. Testing: Install the graphics card back into your PC and monitor its temperatures under load (e.g., using gaming benchmarks or stress tests) to ensure that the cooling has improved and everything is operating correctly.

Disclaimer: Disassembling your graphics card can void its warranty and carries an inherent risk of damage if not performed correctly. Proceed at your own risk.

Where to Purchase Fehonda Thermal Pads

Ready to provide your EVGA GeForce RTX 3060 Ti XC GAMING 8GB with an essential cooling upgrade? You can find Fehonda Thermal Pads directly on AliExpress. The 85x45x2mm sheet is ideal for this particular GPU.

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now

Always ensure you purchase from reputable sellers to guarantee you receive genuine, high-quality thermal pads.

Conclusion: Keep Your EVGA RTX 3060 Ti XC GAMING Running Cool and Powerfully

Using the correct 2mm thick thermal pads, cut to the specified strip dimensions, is a critical step in maintaining the health and performance of your EVGA GeForce RTX 3060 Ti XC GAMING 8GB. Opting for high-quality Fehonda thermal pads will help ensure superior cooling for your VRAM, leading to more stable performance and contributing to the longevity of your graphics card. Don't let degraded thermal pads hold back your GPU's potential!
