ASUS Dual RTX 3060 OC 12GB: Thermal Pad Sizes & Upgrade Guide

Why Correct Thermal Pads are Crucial for Your ASUS Dual RTX 3060 OC

Thermal pads play a vital role in your graphics card's cooling system. They bridge the gaps between critical heat-generating components like the VRAM (Video Random Access Memory) chips and VRMs (Voltage Regulator Modules) and the card's heatsink. This allows for efficient heat transfer, preventing components from overheating.

Using old, degraded, or incorrectly sized thermal pads can lead to significant problems:

• Increased Operating Temperatures: Leading to potential thermal throttling, where the GPU reduces its performance to avoid heat damage.
• Reduced Performance and Stability: You may experience lower frame rates, system crashes, or graphical artifacts during demanding tasks.
• Shortened GPU Lifespan: Prolonged exposure to excessive heat can degrade components over time, reducing the overall lifespan of your graphics card.

Replacing thermal pads with new, correctly-sized, and high-quality ones is an important maintenance step to keep your ASUS Dual RTX 3060 OC 12GB running cool and efficiently.

Accurate Thermal Pad Sizes for ASUS Dual GeForce RTX 3060 OC 12GB

Getting the right thermal pad thickness and dimensions is essential for proper contact and heat dissipation. For the ASUS Dual GeForce RTX 3060 OC 12GB, you will primarily need 2mm and 3mm thick thermal pads for different components.

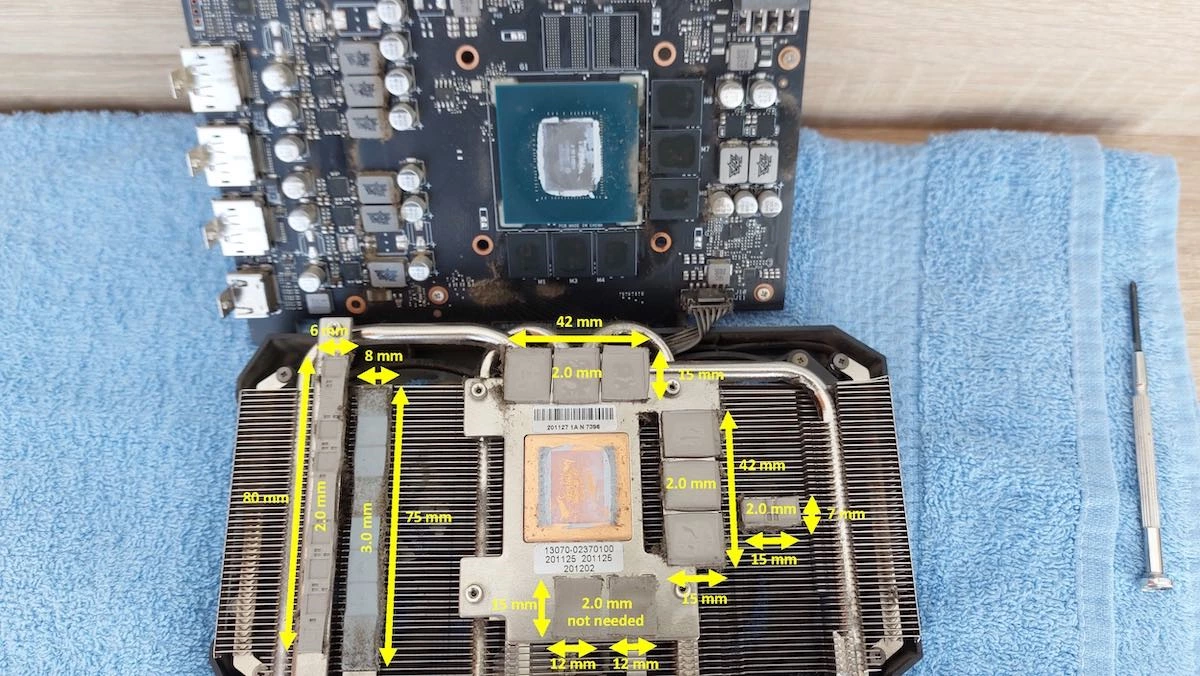

Specific Pad Dimensions:

• VRAMs: Two (2) pieces, each 42mm x 15mm x 2mm
• VRM (1): One (1) piece, 80mm x 6mm x 2mm
• VRM (2): One (1) piece, 75mm x 8mm x 3mm
• VRM (3): One (1) piece, 15mm x 7mm x 2mm

Purchasing Recommendation:

To upgrade this unit, you will need at least:

• One package of 85mm x 45mm Thermal Pad with 2mm thickness. This sheet should be sufficient to cut the pads for the VRAMs, VRM (1), and VRM (3).
• A separate stripe or piece of 3mm thick thermal pad sufficient to cut the 75mm x 8mm piece for VRM (2).

This combination will cover most of the VRAMs and VRM surfaces effectively.

Why Choose Fehonda Thermal Pads?

When selecting replacement thermal pads for your ASUS Dual RTX 3060 OC, quality is key. Fehonda thermal pads are a recommended choice due to their notable benefits:

• Premium Quality: Fehonda pads are manufactured from high-grade materials designed for excellent thermal conductivity and durability, ensuring long-lasting cooling performance.
• Enhanced Cooling: Specifically engineered to optimize heat transfer, these pads help to lower the operating temperatures of critical components, leading to more stable and sustained GPU performance.
• Expertise: Fehonda specializes in thermal solutions, bringing knowledge and precision to their product development and specifications.
• Versatile Solutions: Offering thermal pads in various sizes and thicknesses, including sheets like the 85x45x2mm option, makes it easier to get the right materials for your specific GPU needs.

Investing in quality thermal pads like those from Fehonda is an investment in the health and peak performance of your graphics card.

Tips for Replacing Your GPU Thermal Pads

Replacing GPU thermal pads requires care, patience, and attention to detail. If you are not comfortable disassembling your graphics card, it is advisable to seek professional help or consult detailed video guides specific to your ASUS Dual RTX 3060 OC model.

1. Prepare Your Workspace and Tools: You will need your new Fehonda thermal pads (2mm and 3mm thicknesses), a set of precision screwdrivers, non-metallic prying tools (optional), high-purity isopropyl alcohol (90% or higher) for cleaning, and lint-free cloths or swabs. An anti-static wrist strap is highly recommended.
2. Safety First: Work in a clean, well-lit, and static-free environment to prevent any accidental damage to sensitive electronic components.
3. Careful Disassembly: Methodically disassemble your graphics card to access the old thermal pads. This usually involves removing the cooler shroud and the main heatsink. Keep meticulous track of all screws and their original locations; taking photos as you go can be very helpful.
4. Remove Old Pads and Clean: Gently remove the old thermal pads. Thoroughly clean any residue from the VRAM chips, VRMs, and the heatsink contact points using isopropyl alcohol and a lint-free cloth. Ensure all surfaces are completely clean and dry before applying the new pads.
5. Cut and Apply New Pads: Precisely cut your new Fehonda thermal pads to the dimensions specified above (42x15x2mm for VRAMs, 80x6x2mm for VRM1, 75x8x3mm for VRM2, and 15x7x2mm for VRM3). Remove the protective film from one side of the pad, carefully apply it to the component, then remove the film from the other side just before reattaching the heatsink.
6. Reapply GPU Thermal Paste: Since the heatsink was removed, you will also need to clean the old thermal paste from the GPU die and apply a fresh, even layer of new thermal paste.
7. Reassemble with Care: Carefully reassemble your graphics card, ensuring all components are correctly placed and all connectors are re-seated. Tighten screws appropriately (snug but not over-tightened) to ensure even pressure.
8. Test Your Card: Install the graphics card back into your PC and monitor its temperatures under load using appropriate software to ensure the thermal pad replacement was successful and temperatures are stable.

Disclaimer: Disassembling your graphics card may void its warranty and carries an inherent risk of damage if not performed correctly. Proceed at your own risk.

Where to Purchase Fehonda Thermal Pads

Ready to give your ASUS Dual GeForce RTX 3060 OC 12GB the cooling attention it deserves? You can find high-quality Fehonda Thermal Pads, including suitable 2mm and 3mm options, directly on AliExpress.

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now

Always ensure you purchase from reputable sellers to receive genuine products that will deliver the expected performance.

Conclusion: Keep Your ASUS Dual RTX 3060 OC Running Optimally

Maintaining optimal operating temperatures is fundamental for the performance and longevity of your ASUS Dual GeForce RTX 3060 OC 12GB. By using correctly sized (2mm and 3mm) and high-quality replacement thermal pads, such as those offered by Fehonda, you can significantly enhance your GPU's cooling efficiency, prevent performance issues related to overheating, and enjoy a more stable and reliable gaming or creative experience.
