Why Correct Thermal Pads are Crucial for Your GIGABYTE RTX 3060 GAMING OC
Thermal pads are vital for your graphics card's cooling system. They bridge the microscopic gaps between heat-generating components, such as the VRAM (Video Random Access Memory) chips and VRMs (Voltage Regulator Modules), and the card's main heatsink. This direct contact allows for efficient heat transfer, preventing these sensitive components from overheating.
Using old, degraded, or incorrectly sized thermal pads can lead to several significant problems:
- Increased Operating Temperatures: This can cause thermal throttling, where the GPU intentionally slows itself down to prevent heat damage, leading to reduced performance.
- Reduced Performance and Stability: You might experience lower frame rates in games, system crashes, or visual artifacts during demanding tasks.
- Shortened GPU Lifespan: Prolonged exposure to excessive heat can accelerate the wear and tear on components, potentially reducing the overall lifespan of your graphics card.
Replacing thermal pads with new, correctly-sized, and high-quality ones is an important maintenance step to keep your GIGABYTE RTX 3060 GAMING OC 12G running coolly and efficiently.

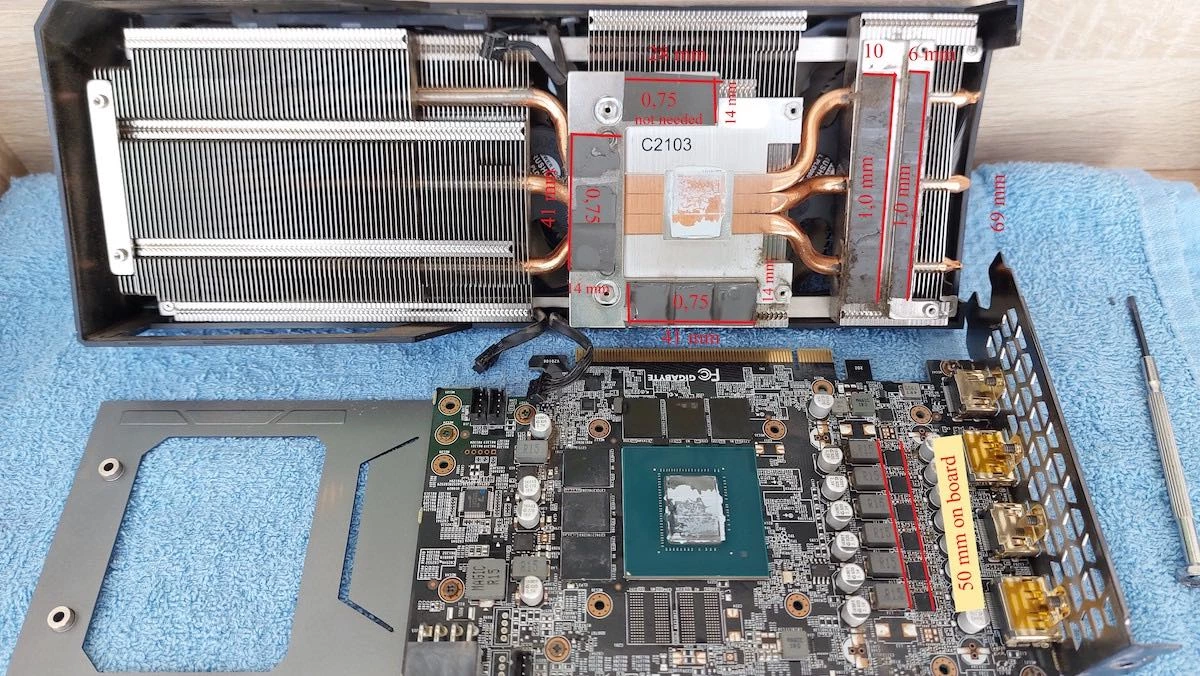

Accurate Thermal Pad Sizes for GIGABYTE GeForce RTX 3060 GAMING OC 12G
Getting the right thermal pad thickness and dimensions is essential for ensuring proper contact and optimal heat dissipation. For the GIGABYTE GeForce RTX 3060 GAMING OC 12G, you will primarily need 0.75mm and 1mm thick thermal pads.
Specific Pad Dimensions:
- VRAMs: Two (2) pieces, each 41mm x 14mm x 0.75mm
- Note: While 0.75mm is specified for VRAM, a soft enough 1mm thermal pad might also work as a substitute if 0.75mm is unavailable, though achieving the correct compression is key.
- VRM (1): One (1) piece, 69mm x 10mm x 1mm
- VRM (2): One (1) piece, 69mm x 6mm x 1mm
Purchasing Recommendation:
It may be possible to upgrade this unit by cutting all necessary pieces from a single 85mm x 45mm thermal pad package, provided you can source this sheet in both 0.75mm and 1mm thicknesses, or if you opt to use a high-quality, compressible 1mm pad for all areas (though adhering to specified thicknesses is generally recommended for best results).
Why Choose Fehonda Thermal Pads?
When selecting replacement thermal pads for your GIGABYTE RTX 3060 GAMING OC, the quality of the pads is critical. Fehonda thermal pads are a recommended choice due to their recognized benefits:
- Premium Quality: Fehonda pads are manufactured from high-grade materials designed for excellent thermal conductivity and durability, ensuring long-lasting and effective cooling performance.
- Enhanced Cooling: Specifically engineered to optimize heat transfer, these pads help to lower the operating temperatures of critical components, contributing to more stable and sustained GPU performance.
- Expertise: Fehonda specializes in thermal solutions, bringing dedicated knowledge and precision to their product development and specifications.
- Versatile Solutions: Offering thermal pads in various sizes and thicknesses, including sheets suitable for custom cutting, makes it easier to get the right materials for your specific GPU needs.
Investing in quality thermal pads like those from Fehonda is an investment in the health and peak performance of your graphics card.
Tips for Replacing Your GPU Thermal Pads
Replacing GPU thermal pads requires care, patience, and attention to detail. If you are not comfortable disassembling your graphics card, it is advisable to seek professional help or consult detailed video guides specific to your GIGABYTE RTX 3060 GAMING OC model.
- Prepare Your Workspace and Tools: You will need your new Fehonda thermal pads (0.75mm and 1mm thicknesses), a set of precision screwdrivers, non-metallic prying tools (optional), high-purity isopropyl alcohol (90% or higher) for cleaning, and lint-free cloths or swabs. An anti-static wrist strap is highly recommended to prevent static damage.
- Safety First: Work in a clean, well-lit, and static-free environment.
- Careful Disassembly: Methodically disassemble your graphics card to access the old thermal pads. This typically involves removing the cooler shroud and the main heatsink. Keep meticulous track of all screws and their original locations; taking photos during the process can be very helpful for reassembly.
- Remove Old Pads and Clean: Gently remove the old thermal pads. Thoroughly clean any residue from the VRAM chips, VRMs, and the heatsink contact points using isopropyl alcohol and a lint-free cloth. Ensure all surfaces are completely clean and dry before applying the new pads.
- Cut and Apply New Pads: Precisely cut your new Fehonda thermal pads to the dimensions specified above (41x14mm for VRAMs, 69x10mm for VRM1, and 69x6mm for VRM2), ensuring you use the correct thickness (0.75mm for VRAMs, 1mm for VRMs). Remove the protective film from one side of the pad, carefully apply it to the component, then remove the film from the other side just before reattaching the heatsink.
- Reapply GPU Thermal Paste: Since the heatsink was removed from the GPU die, you will also need to clean off the old thermal paste and apply a fresh, even layer of new, high-quality thermal paste.
- Reassemble with Care: Carefully reassemble your graphics card, ensuring all components are correctly placed and all connectors are re-seated. Tighten screws appropriately (snug but not over-tightened) to ensure even pressure across the components.
- Test Your Card: After reassembly, install the graphics card back into your PC. Monitor its temperatures under load using appropriate software to ensure the thermal pad replacement was successful and that temperatures are stable and within acceptable ranges.
Disclaimer: Disassembling your graphics card may void its warranty and carries an inherent risk of damage if not performed correctly. Proceed at your own risk.
Where to Purchase Fehonda Thermal Pads
Ready to give your GIGABYTE GeForce RTX 3060 GAMING OC 12G the cooling upgrade it deserves? You can find high-quality Fehonda Thermal Pads, including suitable 0.75mm and 1mm options, directly on AliExpress.
FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now
Always ensure you purchase from reputable sellers to receive genuine products that will deliver the expected thermal performance.
Conclusion: Keep Your GIGABYTE RTX 3060 GAMING OC Running Optimally
Maintaining optimal operating temperatures is fundamental for the performance and longevity of your GIGABYTE GeForce RTX 3060 GAMING OC 12G. By using correctly sized (0.75mm for VRAM, 1mm for VRMs) and high-quality replacement thermal pads, such as those offered by Fehonda, you can significantly enhance your GPU's cooling efficiency. This helps prevent performance issues related to overheating and allows you to enjoy a more stable and reliable gaming or creative experience for the lifespan of your card.
