Palit RTX 3070 Ti GamingPro: Thermal Pad Sizes & Guide

Why Correct Thermal Pads are Crucial for Your Palit RTX 3070 Ti GamingPro

Thermal pads are critical for efficiently transferring heat from vital components on your graphics card—such as VRAM (Video Random Access Memory) modules, VRMs (Voltage Regulator Modules), and other ICs—to the card's heatsink assembly. Effective heat dissipation is key to preventing these components from overheating, which can lead to performance issues and shorten the card's lifespan.

Using old, worn-out, or incorrectly sized/thicknessed thermal pads can result in:

• Increased Operating Temperatures: This can cause thermal throttling, where the GPU reduces its clock speeds to prevent damage, thereby lowering your performance.
• System Instability: Overheating may lead to crashes, visual artifacts, or system freezes during demanding tasks.
• Reduced GPU Lifespan: Prolonged exposure to high temperatures can degrade electronic components over time.

Replacing thermal pads with new, high-quality ones of the correct specifications is an important maintenance step to keep your Palit RTX 3070 Ti GamingPro running cool and reliably.

Accurate Thermal Pad Sizes for Palit GeForce RTX 3070 Ti GamingPro

The Palit GeForce RTX 3070 Ti GamingPro utilizes several different thermal pad thicknesses across its various components. Careful attention to these varying thicknesses is crucial for a successful replacement.

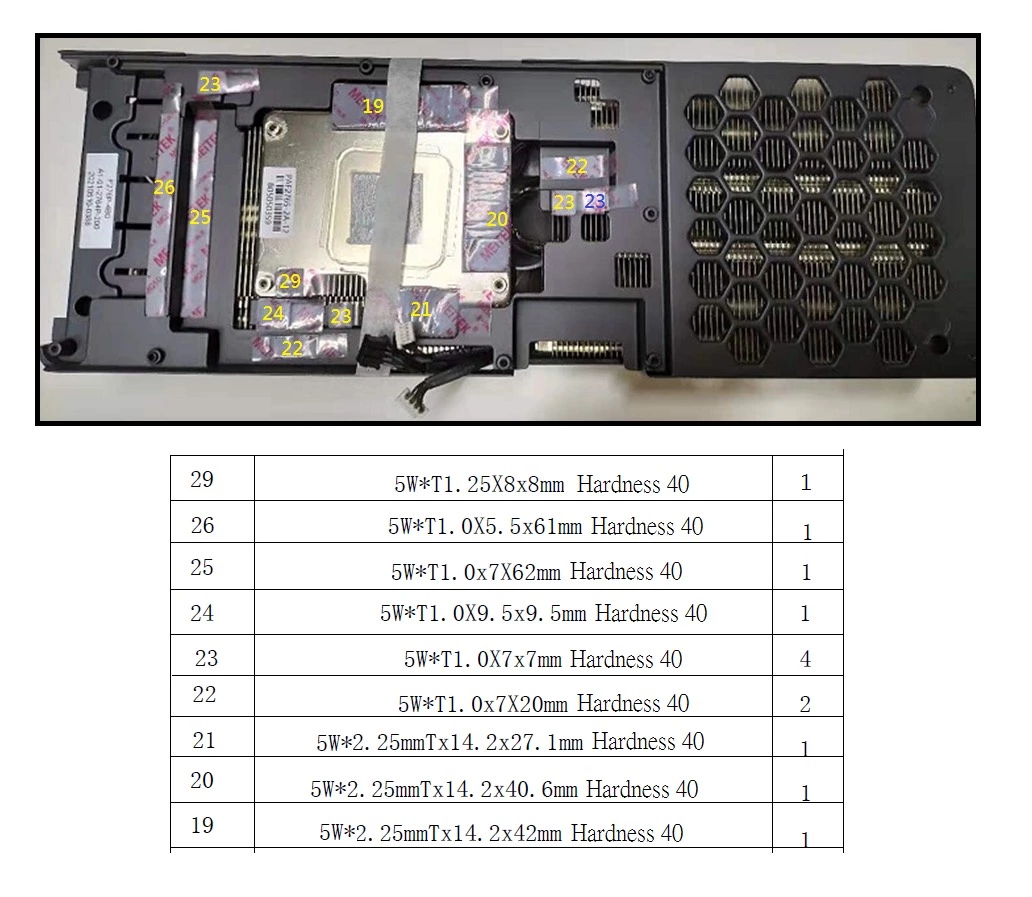

Specific Pad Dimensions:

VRAMs (Front):

• It is suggested to use 2.5mm thick thermal pads for the VRAM modules on the front of the PCB.
  • An 85mm x 45mm x 2.5mm sheet of thermal pad material is recommended for cutting the VRAM pads. You will need to measure the individual VRAM modules on your card to cut precise pieces from this sheet.

Other Component Pads (Various Thicknesses):

• Pad 29: 8mm x 8mm x 1.25mm
  • Note: The initial suggestion for Pad 29 was 1.5mm thickness. The detailed list specifies 1.25mm. Please carefully check the gap or the original pad on your card to determine the best fit. If 1.25mm pads are unavailable, a high-quality, slightly more compressible 1.5mm pad might work, but aim for the closest possible thickness.
• Pad 26: 61mm x 5.5mm x 1mm
• Pad 25: 62mm x 7mm x 1mm
• Pad 24: 9.5mm x 9.5mm x 1mm
• Pad 23: Four (4) pieces, each 7mm x 7mm x 1mm
• Pad 22: Two (2) pieces, each 20mm x 7mm x 1mm
• Pad 21: 27.1mm x 14.2mm x 2.25mm
• Pad 20: 40.6mm x 14.2mm x 2.25mm
• Pad 19: 42mm x 14.2mm x 2.25mm

Summary of Required Thicknesses & Purchasing Recommendation:

Based on the detailed list above, you will need thermal pad material in the following thicknesses:

• 1.0mm (for Pads 22, 23, 24, 25, 26)
• 1.25mm (for Pad 29 - or 1.5mm if 1.25mm is unavailable and the narrative suggestion is followed after verification)
• 2.25mm (for Pads 19, 20, 21)
• 2.5mm (for VRAMs on the front)

It's recommended to purchase sheets of thermal pad material for each required thickness. For example:

• One sheet of 85mm x 45mm x 1.0mm (for the "Pads on the side" that are 1mm thick, as per your general sheet advice).
• One sheet/piece of 1.25mm (or 1.5mm) material sufficient for Pad 29.
• One sheet of 85mm x 45mm x 2.25mm (or enough material for Pads 19, 20, 21).
• One sheet of 85mm x 45mm x 2.5mm (for VRAMs, as per your general sheet advice).

Always ensure you have enough material to cut all specified pieces. The end of your provided text mentioned "Pads on the side: 85x45x1mm," which covers the 1mm pads. The other thicknesses (1.25mm/1.5mm, 2.25mm) would require separate purchases.

Why Choose Fehonda Thermal Pads?

When replacing thermal pads with such varied and specific requirements, the quality of the pads is critical. Fehonda thermal pads are a recommended choice:

• Premium Quality: Manufactured from high-grade materials for excellent thermal conductivity and durability.
• Enhanced Cooling: Designed to optimize heat transfer, helping to lower GPU component temperatures.
• Expertise: Fehonda specializes in thermal solutions, understanding the needs of high-performance electronics.
• Versatile Solutions: Offering thermal pads in various thicknesses and sheet sizes provides the flexibility needed for a complex card like the Palit RTX 3070 Ti GamingPro.

Tips for Replacing Your GPU Thermal Pads

This process requires precision and care due to the multiple pad thicknesses and specific dimensions. If inexperienced, seek professional help or follow detailed model-specific video guides.

1. Preparation: Gather tools: Fehonda thermal pad sheets (1mm, 1.25mm/1.5mm, 2.25mm, 2.5mm), precision screwdrivers, sharp craft knife/scissors, ruler/calipers, non-metallic prying tools, isopropyl alcohol (90%+), lint-free cloths, and an anti-static wrist strap.
2. Disassembly & Verification: Carefully disassemble your card. Crucially, verify the thickness required for Pad 29. Measure components for all pads to confirm the listed dimensions or to determine cuts if VRAM pads aren't pre-dimensioned in your source.
3. Remove Old Pads & Clean: Gently remove all old pads. Thoroughly clean component surfaces and heatsink contact points with isopropyl alcohol. Ensure dryness.
4. Cut and Apply New Pads: Precisely cut pads from the correct thickness sheets according to the dimensions. For VRAMs, cut from the 2.5mm sheet. For Pad 29, use your verified thickness (1.25mm or 1.5mm). Apply carefully after removing protective films.
5. Reapply GPU Thermal Paste: Clean the GPU die and apply fresh, high-quality thermal paste.
6. Reassembly: Carefully reassemble, ensuring even pressure. Do not overtighten.
7. Testing: Install and monitor temperatures under load to confirm success.

Disclaimer: GPU disassembly is risky and may void your warranty. Proceed at your own risk.

Where to Purchase Fehonda Thermal Pads

For high-quality Fehonda thermal pad sheets suitable for the diverse needs of your Palit GeForce RTX 3070 Ti GamingPro, check online marketplaces like AliExpress:

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now

Ensure you purchase sheets of 1.0mm, 1.25mm (or 1.5mm), 2.25mm, and 2.5mm thickness from a reputable seller, in quantities sufficient for all listed pads.

Conclusion: Maintain Your Palit RTX 3070 Ti GamingPro's Elite Performance

Proper thermal pad replacement is vital for the Palit GeForce RTX 3070 Ti GamingPro to deliver its full potential reliably. By using high-quality Fehonda thermal pads of the correct, varied thicknesses and meticulously cutting each piece to the specified dimensions (while verifying any uncertain measurements like Pad 29), you can ensure optimal heat dissipation. This leads to a cooler, more stable, and longer-lasting graphics card for your high-end gaming and creative endeavors.
