KFA2 GeForce RTX 3070 OC 8GB: Comprehensive Thermal Pad Replacement Guide

Why Correct Thermal Pads are Crucial for Your KFA2 RTX 3070 OC

Thermal pads are vital for conducting heat away from key heat-generating components on your graphics card, such as the VRAM (Video Random Access Memory) modules, VRMs (Voltage Regulator Modules), MOSFETs, and other ICs, transferring this heat to the card's heatsink assembly. Efficient heat dissipation is paramount to prevent these sensitive components from overheating.

Using old, degraded, or incorrectly sized/thicknessed thermal pads can lead to several significant problems:

• Increased Operating Temperatures: This can cause thermal throttling, where the GPU automatically reduces its clock speeds to prevent heat damage, directly impacting your performance.
• System Instability: Overheating may manifest as game crashes, visual artifacts on your screen, system freezes, or other frustrating interruptions.
• Reduced GPU Lifespan: Continuous exposure to high temperatures can accelerate the wear and tear on electronic components, potentially shortening the operational life of your valuable graphics card.

Replacing thermal pads with new, high-quality ones of the correct thicknesses is an important maintenance step to keep your KFA2 RTX 3070 OC running coolly and reliably.

Recommended Thermal Pad Thicknesses for KFA2 GeForce RTX 3070 OC 8GB

For the KFA2 GeForce RTX 3070 OC 8GB, a full thermal pad replacement will require multiple thicknesses to ensure optimal contact and thermal transfer for different components.

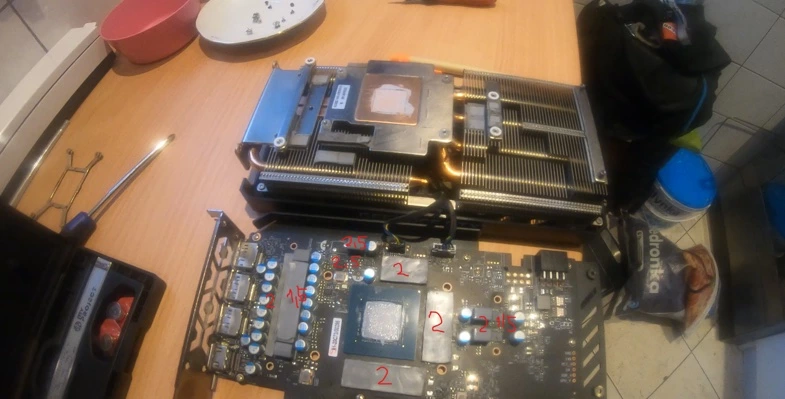

• VRAMs / Memories: You should use 2mm thick thermal pads on the VRAM modules.
• Other Components ("The rest of the pads"): These components will have various thickness requirements. For full coverage and replacement, you will also need 1.5mm and 2.5mm thick thermal pads in addition to the 2mm pads for VRAM.

Purchasing Recommendation: To perform a comprehensive thermal pad replacement, you will need to acquire thermal pad sheets of all three thicknesses:

• Sheet(s) of 1.5mm thermal pad
• Sheet(s) of 2mm thermal pad (e.g., an 85x45x2mm sheet for VRAMs and potentially other 2mm areas)
• Sheet(s) of 2.5mm thermal pad

A common sheet size like 85mm x 45mm for each thickness should provide a good starting point, but you may need more depending on the total surface area of all components.

Important Note on Specific Pad Dimensions: Unfortunately, specific length and width dimensions for each individual pad on this KFA2 RTX 3070 OC model are not provided in the source information. Therefore, users will need to meticulously measure all components that require thermal pads (VRAMs, VRMs, MOSFETs, etc.) on their specific card during disassembly. This will allow you to determine the exact length and width to cut from your 1.5mm, 2mm, and 2.5mm thermal pad sheets, ensuring you use the correct thickness for each specific component group.

Why Choose Fehonda Thermal Pads?

When undertaking a thermal pad replacement, especially when custom cutting from sheets of various thicknesses is involved, the quality of the thermal pad material is crucial. Fehonda thermal pads are a recommended option due to several benefits:

• Premium Quality: Fehonda utilizes high-grade materials in their thermal pads, ensuring excellent thermal conductivity and durability for long-lasting, effective cooling.
• Enhanced Cooling: Specifically engineered to optimize heat transfer, these pads can help significantly reduce the operating temperatures of your GPU's critical components.
• Expertise: Fehonda specializes in thermal interface materials, offering products designed with an understanding of the cooling needs of modern, high-performance electronics.
• Versatile Solutions: Providing thermal pads in various thicknesses and sheet sizes, like the common 85x45mm, offers the flexibility to custom-cut pads for a wide variety of GPUs and component layouts, essential for this card's varied requirements.

Tips for Replacing Your GPU Thermal Pads (Custom Cutting & Thickness Matching Required)

Replacing GPU thermal pads requires precision, care, and patience, particularly when you need to identify which components need which thickness and then measure and cut the pads yourself. If you are not experienced with GPU disassembly, consider seeking professional assistance or meticulously following detailed video guides for your specific KFA2 RTX 3070 OC model.

1. Preparation: Gather your tools: new Fehonda thermal pad sheets (1.5mm, 2mm, and 2.5mm thicknesses), a precision screwdriver set, a sharp craft knife or precision scissors for cutting pads, a ruler or digital calipers for measuring, non-metallic prying tools (optional), high-purity isopropyl alcohol (90%+), and lint-free cloths. An anti-static wrist strap is crucial to protect components.
2. Disassembly & Identification/Measurement: Carefully disassemble your graphics card to expose all components with thermal pads. Critically, identify which components correspond to the 2mm VRAM pads. For all other components, you will need to carefully assess and measure the gap or the old pad's thickness (if reliable) to determine if they require 1.5mm, 2mm, or 2.5mm pads. Once thickness is determined for a component group, measure the length and width of the components.
3. Remove Old Pads & Clean: Gently remove all old thermal pad material. Thoroughly clean the surfaces of the components and the heatsink contact points with isopropyl alcohol to remove any oily residue or debris. Ensure surfaces are completely dry before applying new pads.
4. Cut New Pads: Based on your measurements and thickness determinations, carefully and precisely cut the new Fehonda thermal pads from the appropriate sheets. Aim for clean, straight cuts. The pads should cover the entire surface of the component.
5. Apply New Pads: Remove the protective film from one side of a newly cut pad, apply it to the corresponding component (ensuring correct thickness is used), then remove the film from the other side just before reattaching the heatsink. Ensure good contact.
6. Reapply GPU Thermal Paste: Since the heatsink is removed from the GPU die, you will also need to clean the old thermal paste from the GPU die and apply a fresh, even layer of new, high-quality thermal paste.
7. Reassembly: Carefully reassemble your graphics card, ensuring even pressure when reattaching the heatsink. Do not overtighten screws, as this can damage the PCB.
8. Testing: Install the card back into your PC and monitor temperatures under load (e.g., using benchmarking software or demanding games) to verify the success of the replacement and ensure temperatures are stable and within optimal ranges.

Where to Purchase Fehonda Thermal Pads

For reliable, high-quality Fehonda thermal pad sheets suitable for your KFA2 GeForce RTX 3070 OC 8GB, online marketplaces like AliExpress are a common source.

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now

Ensure you purchase sheets of 1.5mm, 2mm, and 2.5mm thickness from a reputable seller to perform a full upgrade.

Conclusion: Optimize Your KFA2 RTX 3070 OC's Cooling System

Proper thermal pad replacement is key to maintaining the performance, stability, and health of your KFA2 GeForce RTX 3070 OC 8GB. By using high-quality Fehonda thermal pad sheets of the correct thicknesses (2mm for VRAMs; 1.5mm, 2mm, and 2.5mm for other components as needed) and carefully measuring and cutting the individual pieces to fit your card's specific layout, you can significantly improve your GPU's thermal performance. This leads to a cooler, potentially quieter, and more reliable gaming or creative experience.
