MSI GeForce RTX 3070 GAMING X TRIO: Thermal Pad Replacement Guide

Why Correct Thermal Pads are Crucial for Your MSI RTX 3070 GAMING X TRIO

Thermal pads are essential for transferring heat away from critical components on your graphics card, such as the VRAM (Video Random Access Memory) chips, VRMs (Voltage Regulator Modules), and other heat-generating ICs, to the card's large heatsink assembly. Efficient heat dissipation prevents these components from overheating, which can lead to performance issues and potential long-term damage.

Using old, worn-out, or incorrectly chosen thermal pads can result in:

• Increased Operating Temperatures: This may cause thermal throttling, where the GPU reduces its clock speeds to prevent overheating, thus lowering your gaming or workload performance.
• System Instability: Overheating can lead to game crashes, visual artifacts, or even unexpected system shutdowns.
• Reduced GPU Lifespan: Continuous exposure to high temperatures can shorten the operational life of your graphics card's sensitive components.

Replacing thermal pads with new, high-quality ones of the correct thickness is an important maintenance step to keep your MSI RTX 3070 GAMING X TRIO running optimally.

Recommended Thermal Pad Thicknesses for MSI GeForce RTX 3070 GAMING X TRIO

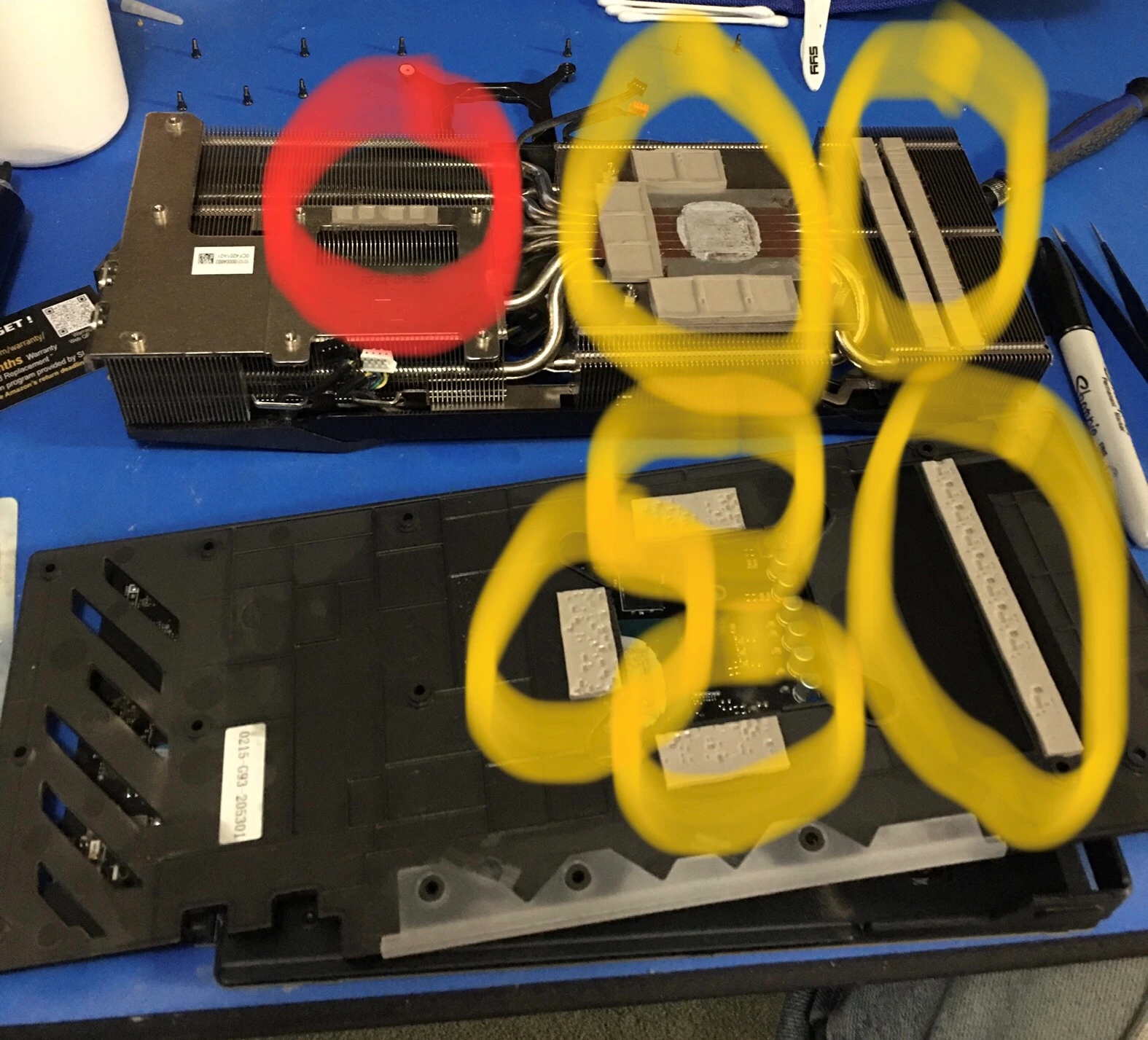

For the MSI GeForce RTX 3070 GAMING X TRIO, specific pre-cut dimensions for individual pads are not commonly listed universally. However, information based on visual analysis (often color-coded in disassembly guides) indicates the primary thicknesses required:

• Yellow Marked Areas: These areas typically require 2.5mm thick thermal pads.
• Red Marked Areas: These areas typically require 1.5mm thick thermal pads.

Purchasing Recommendation: Based on visual estimations of coverage:

• You will likely need two (2) or three (3) packages of 85mm x 45mm x 2.5mm thermal pad sheets to cover all the "Yellow" marked areas (which often include VRAM and larger VRM sections).
• You will also need a stripe or a smaller sheet of 1.5mm thick thermal pad for the "Red" marked areas. An 85x45x1.5mm sheet cut down, or a narrower "stripe" if available, would be suitable.

Important Note on Specific Dimensions: The information provided relies on a visual guide (a "photo with color marks" that you, the user, would refer to). You will need to carefully identify the 'Yellow' (2.5mm) and 'Red' (1.5mm) areas on your specific card during disassembly and measure the length and width of each component requiring a pad within those zones. This will allow you to determine the exact sizes to cut from your chosen thermal pad sheets.

Why Choose Fehonda Thermal Pads?

When undertaking a thermal pad replacement, especially when custom cutting based on visual guides is involved, the quality of the thermal pad material is crucial. Fehonda thermal pads are a recommended option due to several benefits:

• Premium Quality: Fehonda utilizes high-grade materials in their thermal pads, ensuring excellent thermal conductivity and durability for long-lasting, effective cooling.
• Enhanced Cooling: Specifically engineered to optimize heat transfer, these pads can help significantly reduce the operating temperatures of your GPU's critical components.
• Expertise: Fehonda specializes in thermal interface materials, offering products designed with an understanding of the cooling needs of modern, high-performance electronics.
• Versatile Solutions: Providing thermal pads in sheet form, like the 85x45mm size, offers the flexibility to custom-cut pads for a wide variety of GPUs and specific component layouts, which is ideal for this card's requirements.

Tips for Replacing Your GPU Thermal Pads (Custom Cutting Required)

Replacing GPU thermal pads requires precision, care, and patience, particularly when you need to identify areas by color (as per your visual guide) and measure/cut the pads yourself. If you are not experienced with GPU disassembly, consider seeking professional assistance or meticulously following detailed video guides for your specific MSI RTX 3070 GAMING X TRIO model.

1. Preparation: Gather your tools: new Fehonda thermal pad sheets (sufficient 2.5mm and 1.5mm material), a precision screwdriver set, a sharp craft knife or precision scissors for cutting pads, a ruler or digital calipers for measuring, non-metallic prying tools (optional), high-purity isopropyl alcohol (90%+), and lint-free cloths. An anti-static wrist strap is crucial to protect components.
2. Consult Your Visual Guide: Before and during disassembly, constantly refer to the "photo with color marks" that indicates which areas need 2.5mm (Yellow) and 1.5mm (Red) pads.
3. Disassembly & Measurement: Carefully disassemble your graphics card to expose the components. Identify the 'Yellow' and 'Red' zones. Before removing old pads (if intact), measure their length and width. If degraded, measure the components themselves within these zones. Note these dimensions carefully.
4. Remove Old Pads & Clean: Gently remove all old thermal pad material. Thoroughly clean the surfaces of the components and the heatsink contact points with isopropyl alcohol to remove any oily residue or debris. Ensure surfaces are completely dry.
5. Cut New Pads: Based on your measurements for each color-coded zone, carefully and precisely cut the new Fehonda thermal pads from your 2.5mm and 1.5mm sheets. Aim for clean, straight cuts.
6. Apply New Pads: Remove the protective film from one side of a newly cut pad, apply it to the corresponding component (matching thickness to the Yellow/Red zone), then remove the film from the other side just before reattaching the heatsink. Ensure good contact.
7. Reapply GPU Thermal Paste: Since the heatsink is removed from the GPU die, you will also need to clean the old thermal paste from the GPU die and apply a fresh, even layer of new, high-quality thermal paste.
8. Reassembly: Carefully reassemble your graphics card, ensuring even pressure when reattaching the heatsink. Do not overtighten screws.
9. Testing: Install the card back into your PC and monitor temperatures under load (e.g., using benchmarking software or demanding games) to verify the success of the replacement and ensure temperatures are stable and within optimal ranges.

Where to Purchase Fehonda Thermal Pads

For reliable, high-quality Fehonda thermal pad sheets suitable for your MSI GeForce RTX 3070 GAMING X TRIO, online marketplaces like AliExpress are a common source.

FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now

Ensure you purchase sufficient quantities of both 2.5mm and 1.5mm thick thermal pad sheets (e.g., 2-3 packs of 85x45x2.5mm and at least one pack/stripe of 85x45x1.5mm or equivalent) from a reputable seller.

Conclusion: Optimize Your MSI RTX 3070 GAMING X TRIO's Cooling

Proper thermal pad replacement is key to maintaining the exceptional performance and health of your MSI GeForce RTX 3070 GAMING X TRIO. By using high-quality Fehonda thermal pad sheets of the correct thicknesses (2.5mm for 'Yellow' areas, 1.5mm for 'Red' areas) and carefully measuring and cutting the individual pieces based on your card's specific layout, you can significantly improve your GPU's thermal performance, leading to a cooler, potentially quieter, and more reliable gaming or creative experience.
