Why Correct Thermal Pads are Crucial for Your ROG STRIX RTX 3080 OC
Thermal pads play an indispensable role in your graphics card's cooling. They bridge the gaps between critical heat-generating components—such as VRAM (Video Random Access Memory) modules on both the front and back, VRMs (Voltage Regulator Modules), MOSFETs, and other ICs ("pads on the sides")—and the card's massive heatsink assembly. Efficient heat transfer is paramount to prevent these components from overheating.
Using deteriorated, old, or incorrectly sized/thicknessed thermal pads can lead to serious issues:
- Elevated Operating Temperatures: This can trigger thermal throttling, where the GPU significantly reduces its performance to prevent heat damage.
- System Instability: Overheating can cause game crashes, visual artifacts, system freezes, and other frustrating interruptions, especially under heavy load.
- Reduced GPU Lifespan: Prolonged exposure to high temperatures can accelerate the degradation of delicate electronic components, shortening your card's lifespan.
Replacing thermal pads with new, high-quality ones of the correct specifications is a vital maintenance step for any ROG STRIX RTX 3080 OC owner aiming for sustained performance and reliability.
Recommended Thermal Pad Sheets & Thicknesses for ASUS ROG STRIX RTX 3080 OC
The ASUS ROG STRIX RTX 3080 OC requires a variety of thermal pad thicknesses for optimal coverage. You will need to purchase thermal pad sheets of these thicknesses and then custom-cut the individual pads.

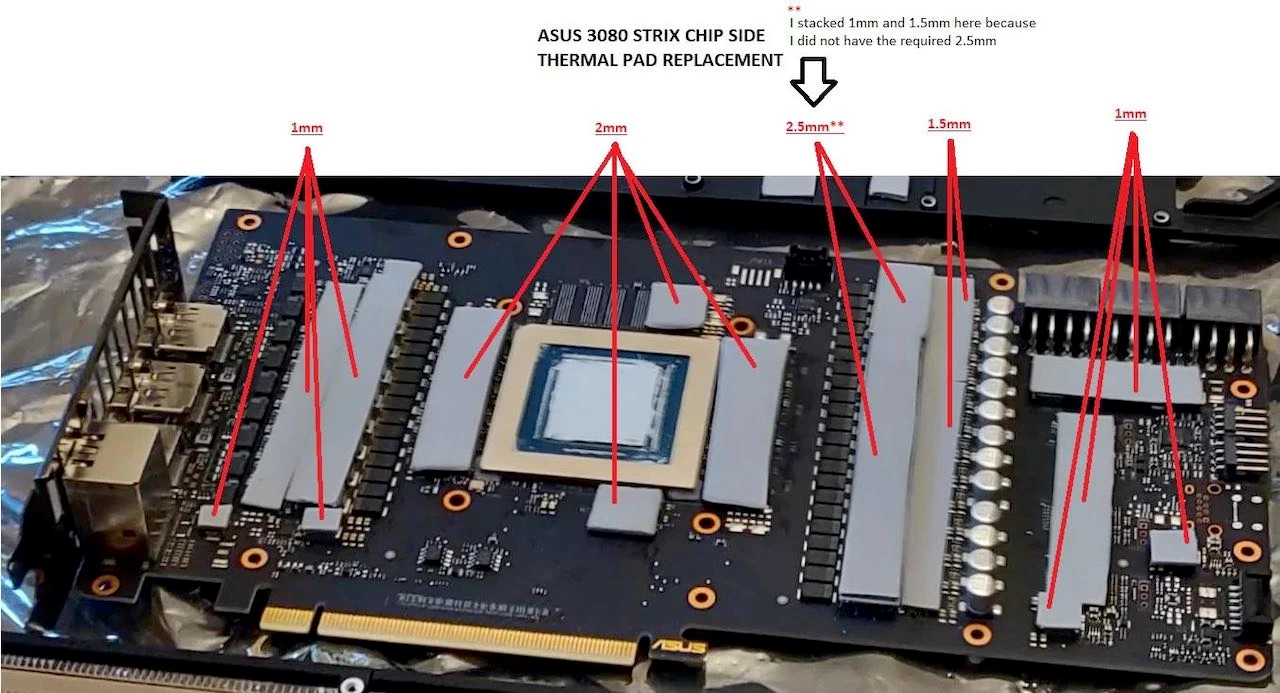

VRAM (Front Side of PCB):
- Required Sheet: Primarily uses 2mm thick thermal pads.
- It's recommended to use one (1) sheet of 85mm x 45mm x 2mm thermal pad material for the VRAM modules on the front.

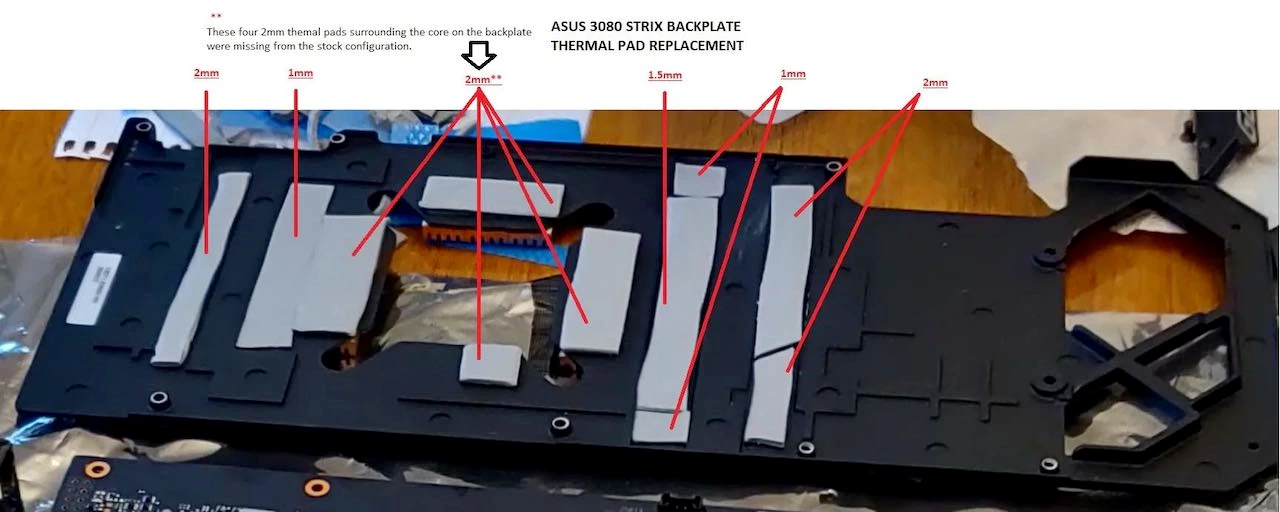

VRAM (Back Side of PCB - Under Backplate):
- Primary Recommendation: Also uses 2mm thick thermal pads.
- One (1) sheet of 85mm x 45mm x 2mm thermal pad material is suggested for the VRAM modules on the back.
- Alternative for Back VRAM: It's noted that even 3mm thick pads can work on the back VRAMs. This might be considered if there's a slightly larger gap or if more pressure is desired, but users should assess this carefully during disassembly to avoid over-compression.
"Pads on the sides" (e.g., VRMs, MOSFETs, other PCB components):
- Required Thicknesses: These components require a mix of 1mm, 1.5mm, 2mm, AND 2.5mm thick thermal pads.
- You will need to purchase sheets of each of these thicknesses (e.g., 85x45mm of each, or larger as needed).
- During disassembly, you must carefully identify which specific side components require which of these four thicknesses.
Important Note on Stacking & Specific Dimensions:
- Stacking: For some areas, particularly if trying to achieve a specific height like 2.5mm and only having 1mm and 1.5mm pads, the source information mentions "you may need to stack the proper sizes to reach that height." While this is a possibility, using a single pad of the correct final thickness is always preferable to stacking, as stacking can introduce inefficiencies in thermal transfer if not done perfectly with highly compressible pads. If a 2.5mm pad is needed, it's best to source a 2.5mm pad directly.
- No Specific L x W Dimensions: Crucially, specific length and width dimensions for each individual pad are not provided in the source text. Users MUST meticulously measure all components (VRAMs on front and back, and all "pads on the sides") on their specific ROG STRIX RTX 3080 OC during disassembly. This will allow you to determine the exact length and width to cut from your chosen thermal pad sheets of the appropriate thicknesses. Refer to any visual guides or pictures you have for component locations.
Why Choose Fehonda Thermal Pads?
Given the complexity and the need for various high-quality pads, Fehonda thermal pads are a recommended choice:
- Premium Quality: Made from high-grade materials ensuring excellent thermal conductivity and durability.
- Enhanced Cooling: Designed to optimize heat transfer, helping to lower GPU component temperatures effectively.
- Expertise: Fehonda specializes in thermal interface solutions, understanding the needs of high-performance electronics.
- Versatile Solutions: Offering thermal pads in various thicknesses and sheet sizes provides the flexibility needed for a demanding card like the ROG STRIX RTX 3080 OC.
Tips for Replacing Your GPU Thermal Pads (ROG STRIX RTX 3080 OC)
This process is intricate and requires significant care. If inexperienced, seek professional help or follow very detailed model-specific video guides.
- Preparation: Gather tools: Fehonda thermal pad sheets (1mm, 1.5mm, 2mm, 2.5mm, and optionally 3mm for back VRAM consideration), precision screwdrivers, sharp craft knife/scissors, ruler/calipers, non-metallic prying tools, isopropyl alcohol (90%+), lint-free cloths, and an anti-static wrist strap.
- Disassembly & Identification/Measurement: Carefully disassemble your card. Critically, identify which "side" components require which thickness (1mm, 1.5mm, 2mm, or 2.5mm). Measure the length and width of ALL components needing pads. For back VRAM, decide if you're using 2mm or attempting 3mm based on your card's specific gaps.
- Remove Old Pads & Clean: Gently remove all old pads. Thoroughly clean component surfaces and heatsink/backplate contact points with isopropyl alcohol. Ensure complete dryness.
- Cut and Apply New Pads: Precisely cut pads from the correct thickness sheets according to your measurements. Apply carefully, ensuring good contact. If considering stacking (as a last resort if exact thickness isn't available), ensure pads are identical in footprint and from a highly compressible material.
- Reapply GPU Thermal Paste: Clean the GPU die and apply fresh, high-quality thermal paste.
- Reassembly: Carefully reassemble, ensuring even pressure. Do not overtighten screws. The ROG STRIX cooler is substantial.
- Testing: Install and monitor temperatures under load to verify success.
Disclaimer: GPU disassembly is very risky, especially with complex cards, and may void your warranty. Proceed with extreme caution and at your own risk.
Where to Purchase Fehonda Thermal Pads
For high-quality Fehonda thermal pad sheets suitable for the demanding needs of your ASUS ROG STRIX GeForce RTX 3080 OC, check online marketplaces like AliExpress:
FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now
Ensure you purchase sheets of 1mm, 1.5mm, 2mm, 2.5mm, and potentially 3mm (if considering for back VRAM) thickness from a reputable seller, in quantities sufficient for all necessary pads (e.g., consider two 85x45mm sheets for the 2mm thickness due to VRAM front/back usage, and at least one sheet for other required thicknesses).
Conclusion: Restore Your ROG STRIX RTX 3080 OC's Cooling Prowess
Proper thermal pad replacement is vital for the ASUS ROG STRIX GeForce RTX 3080 OC to continue delivering its world-class performance. By using high-quality Fehonda thermal pad sheets of the correct thicknesses—2mm for VRAM (with a 3mm option for the back), and a mix of 1mm, 1.5mm, 2mm, and 2.5mm for side components—and by meticulously measuring and cutting each piece, you can ensure optimal heat dissipation. This leads to a cooler, more stable, and longer-lasting elite gaming and professional graphics card.
