Why Correct Thermal Pads are Crucial for Your ROG STRIX RTX 3090
Thermal pads are indispensable for the ROG STRIX RTX 3090's advanced cooling system. They bridge the microscopic air gaps between numerous heat-generating components—such as the 24GB of GDDR6X VRAM (Video Random Access Memory) on both the front and back, VRMs (Voltage Regulator Modules), MOSFETs, and other ICs often referred to as "pads on the side"—and the card's massive heatsink assembly and backplate. This direct contact ensures efficient heat transfer.
Using old, deteriorated, or incorrectly sized/thicknessed thermal pads on a card of this caliber can lead to severe problems:
- Increased Operating Temperatures: Particularly for VRAM, which can cause thermal throttling, significantly reducing the card's world-class performance.
- System Instability: Overheating can manifest as game crashes, visual artifacts, system freezes, especially during prolonged, high-load scenarios.
- Reduced GPU Lifespan: Continuous exposure to excessive heat can accelerate the degradation of sensitive electronic components, potentially shortening the lifespan of your premium graphics card.
Replacing thermal pads with new, high-quality ones of the correct thicknesses is an important maintenance step to keep your ROG STRIX RTX 3090 performing at its absolute best.
Recommended Thermal Pad Sheets & Thicknesses for ASUS ROG STRIX NVIDIA GeForce RTX 3090

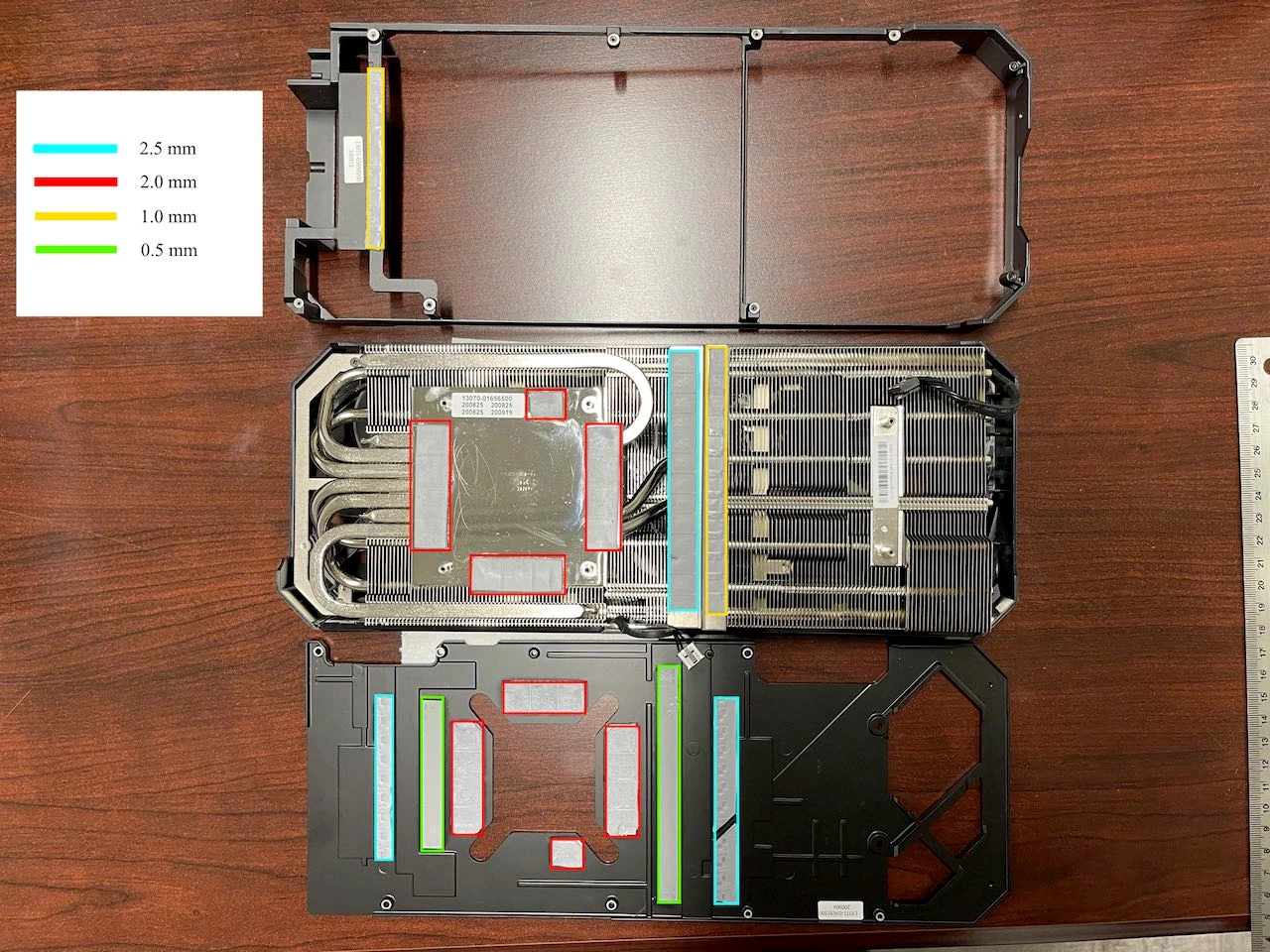

The ASUS ROG STRIX RTX 3090 requires thermal pads of several different thicknesses for optimal coverage of its various components. You will typically purchase thermal pad sheets of these thicknesses and then custom-cut the individual pads.

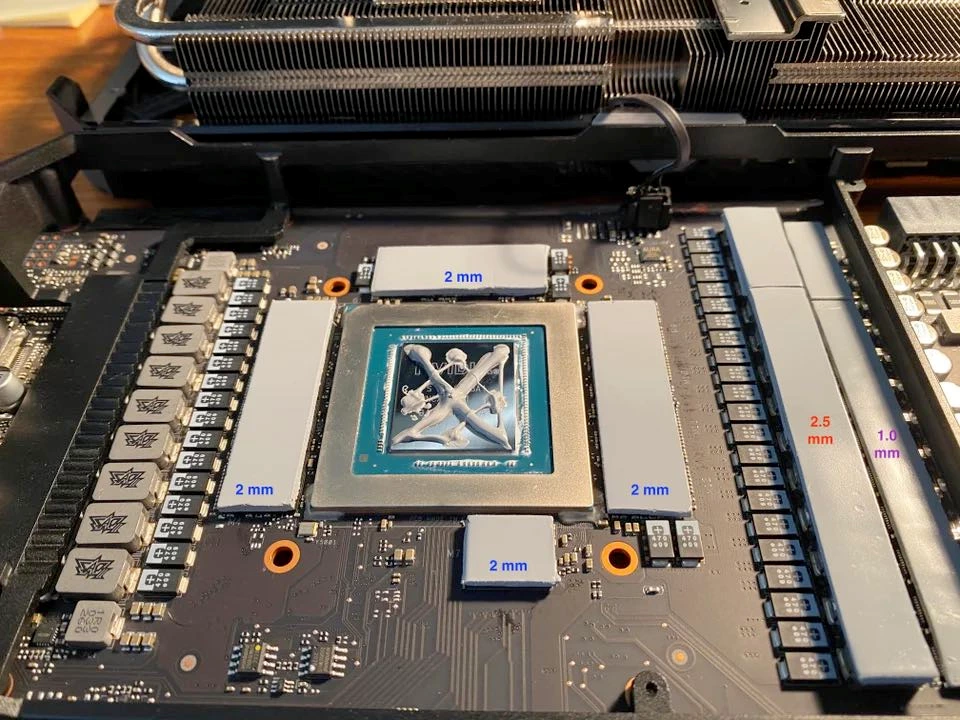

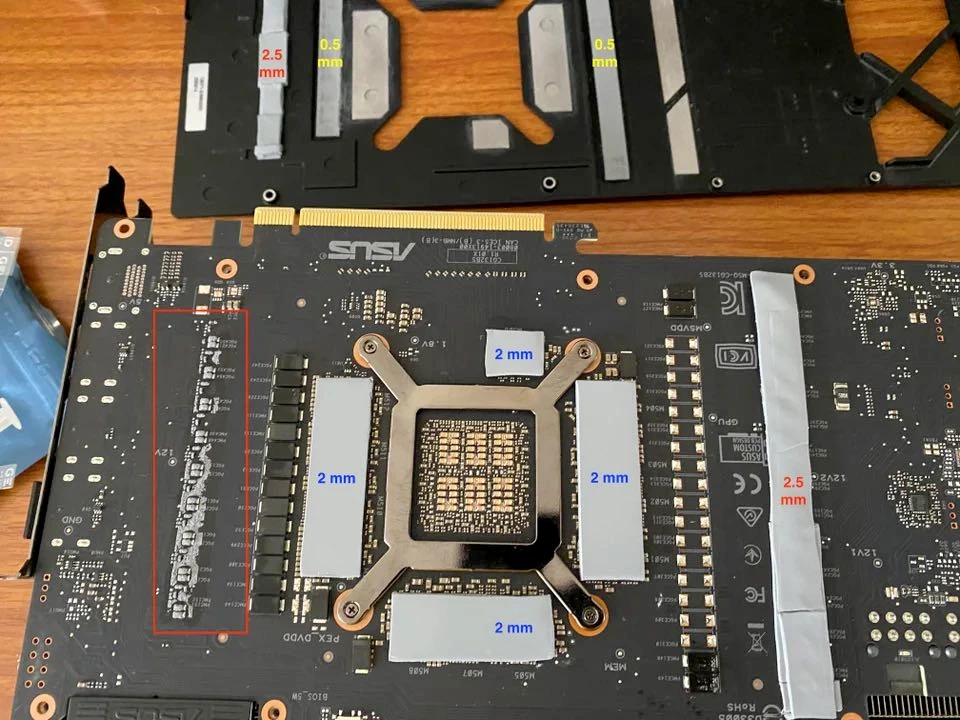

VRAM (Front & Back Sides of PCB):
- Required Thickness: Uses 2mm thick thermal pads for VRAM modules on both the front and back.
- Purchasing Recommendation: You will need two (2) packs of 85mm x 45mm x 2.0mm thermal pad sheets OR one (1) larger piece of 100mm x 100mm x 2.0mm sheet. This amount is to ensure full coverage for all VRAM modules on both sides of the PCB. Individual pads for each VRAM chip will need to be carefully measured and cut from this material.
"Pads on the side #1" (Two Stripes):
- Required Thickness: These two stripes require 0.5mm thick thermal pads.
- Purchasing Recommendation: You will need at least one (1) pack of 85mm x 45mm x 0.5mm thermal pad sheet.
- Important Note: It's mentioned that the longer of these two 0.5mm stripes is likely longer than 80mm, meaning you may need to cut two pieces from your sheet to cover its full length.
"Pads on the side #2" (Two Stripes):
- Required Thickness: These two stripes require 1mm thick thermal pads.
- Purchasing Recommendation: One (1) pack of 85mm x 45mm x 1.0mm thermal pad sheet is probably enough for these. Similar length considerations as the 0.5mm stripes might apply if one is particularly long.
"Pads on the side #3" (Three Stripes):
- Required Thickness: These three stripes require 2.5mm thick thermal pads.
- Purchasing Recommendation: You will need to purchase a sheet of 2.5mm thick thermal pad material (e.g., an 85mm x 45mm x 2.5mm sheet). Again, be mindful of the lengths of these stripes when cutting.
Crucial Action: Measure Individual Pad Dimensions (Length x Width)! While sheet sizes and thicknesses are recommended, specific length and width dimensions for each individual VRAM pad and for each of the "stripes on the side" are not detailed. Users MUST meticulously measure all components (VRAM chips and areas for the various stripes) on their specific ROG STRIX RTX 3090 during disassembly. This will allow you to determine the exact sizes to cut from your chosen thermal pad sheets.
Why Choose Fehonda Thermal Pads?
When undertaking a thermal pad replacement for a flagship card like the ROG STRIX RTX 3090, especially with custom cutting and multiple thicknesses involved, the quality of the thermal pad material is crucial. Fehonda thermal pads are a recommended option:
- Premium Quality: Fehonda utilizes high-grade materials in their thermal pads, ensuring excellent thermal conductivity and durability for long-lasting, effective cooling under extreme loads.
- Enhanced Cooling: Specifically engineered to optimize heat transfer, these pads can help significantly reduce the operating temperatures of your GPU's critical components.
- Expertise: Fehonda specializes in thermal interface materials, offering products designed with an understanding of the cooling needs of modern, high-performance electronics.
- Versatile Solutions: Providing thermal pads in various thicknesses and common sheet sizes offers the flexibility to custom-cut pads for all components on the ROG STRIX RTX 3090.
Tips for Replacing Your GPU Thermal Pads (ASUS ROG STRIX RTX 3090)
Replacing thermal pads on a card of this complexity requires significant precision, care, and patience. If you are not highly experienced with GPU disassembly, consider seeking professional assistance or meticulously following detailed video guides for your specific model.
- Preparation: Gather your tools: new Fehonda thermal pad sheets (0.5mm, 1mm, 2mm, and 2.5mm as per recommendations), a precision screwdriver set, a sharp craft knife or precision scissors, a ruler or digital calipers, non-metallic prying tools (optional), high-purity isopropyl alcohol (90%+), and lint-free cloths. An anti-static wrist strap is crucial.
- Disassembly & Identification/Measurement: Carefully disassemble your graphics card. The ROG STRIX cooler is substantial. Meticulously identify and measure all VRAM chips (front and back) and the areas corresponding to the "Pads on the side" stripes (0.5mm, 1mm, and 2.5mm). Note the lengths and widths needed for each.
- Remove Old Pads & Clean: Gently remove all old thermal pad material. Thoroughly clean the surfaces of the components and the heatsink/backplate contact points with isopropyl alcohol to remove any oily residue or old thermal interface material. Ensure surfaces are completely dry.
- Cut New Pads: Based on your measurements, carefully and precisely cut the new Fehonda thermal pads from the appropriate thickness sheets. For the very long 0.5mm stripe, you may need to cut it as two adjoining pieces. Aim for clean, straight cuts.
- Apply New Pads: Remove the protective film from one side of a newly cut pad, apply it to the corresponding component or area, then remove the film from the other side just before reattaching the heatsink or backplate. Ensure good, even contact.
- Reapply GPU Thermal Paste: Clean the old thermal paste from the GPU die and apply a fresh, even layer of new, high-quality thermal paste.
- Reassembly: Carefully reassemble your graphics card, ensuring even pressure when reattaching the massive heatsink and backplate. Do not overtighten screws.
- Testing: Install the card back into your PC and monitor temperatures, especially VRAM junction temperatures if your software supports it, under load (e.g., using benchmarking software or demanding games) to verify the success of the replacement and ensure temperatures are significantly improved and stable.
Where to Purchase Fehonda Thermal Pads
For reliable, high-quality Fehonda thermal pad sheets suitable for your ASUS ROG STRIX NVIDIA GeForce RTX 3090, online marketplaces like AliExpress are a common source.
FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now
Ensure you purchase sheets of 0.5mm, 1mm, 2mm, and 2.5mm thickness from a reputable seller. For the 2mm VRAM pads, get either two 85x45mm sheets or one 100x100mm sheet. For the side stripes, an 85x45mm sheet of each required thickness (0.5mm, 1mm, 2.5mm) should be considered.
Conclusion: Maintain Your ROG STRIX RTX 3090's Elite Cooling System
Proper thermal pad replacement is paramount for the ASUS ROG STRIX NVIDIA GeForce RTX 3090 to consistently deliver its world-class performance. By using high-quality Fehonda thermal pad sheets of the correct thicknesses (2mm for VRAM; 0.5mm, 1mm, and 2.5mm for various side stripes) and carefully measuring and cutting the individual pieces to fit your card's specific layout, you can ensure optimal heat dissipation across all critical components. This leads to a cooler, more stable, and longer-lasting elite graphics card, ready for any challenge.
