Why Correct Thermal Pads are Crucial for Your RTX 3090 Vision OC
Thermal pads are essential for effectively transferring heat from critical components on your graphics card—such as the GDDR6X VRAM (Video Random Access Memory) modules (on both front and back), VRMs (Voltage Regulator Modules), and other ICs—to the card's substantial heatsink and backplate assembly. Efficient heat dissipation is paramount, especially for a high-TDP card like the RTX 3090.
Using old, worn-out, or incorrectly sized/thicknessed thermal pads can lead to significant issues:
- Increased Operating Temperatures: This can easily cause thermal throttling, where the GPU reduces its clock speeds to prevent overheating, thereby diminishing its flagship performance.
- System Instability: Overheating, particularly of VRAM, can lead to crashes, visual artifacts, or system freezes during demanding tasks.
- Reduced GPU Lifespan: Prolonged exposure to high temperatures can degrade sensitive electronic components over time.
Replacing thermal pads with new, high-quality ones of the correct specifications is a key maintenance step to keep your RTX 3090 Vision OC performing at its best and ensure satisfying temperature drops.
Understanding Thermal Pad Requirements for Your GIGABYTE RTX 3090 Vision OC
The RTX 3090 Vision OC utilizes a range of thermal pad thicknesses. The information provided suggests specific thicknesses for different groups of components, often referred to by numbered pads in disassembly guides or user findings.
Summary of Recommended Thermal Pad Sheets (for cutting individual pads):
Based on the summarized information for broad areas:
- VRAM (Front): It's recommended to use a sheet of 85mm x 45mm x 1.5mm thermal pad material.
- VRAM (Back): A sheet of 85mm x 45mm x 2mm is recommended, with an option to use 2.5mm thick pads as well.
- Pads on the side (VRMs, other components): A sheet of 85mm x 45mm x 1.5mm thermal pad material is suggested for these.

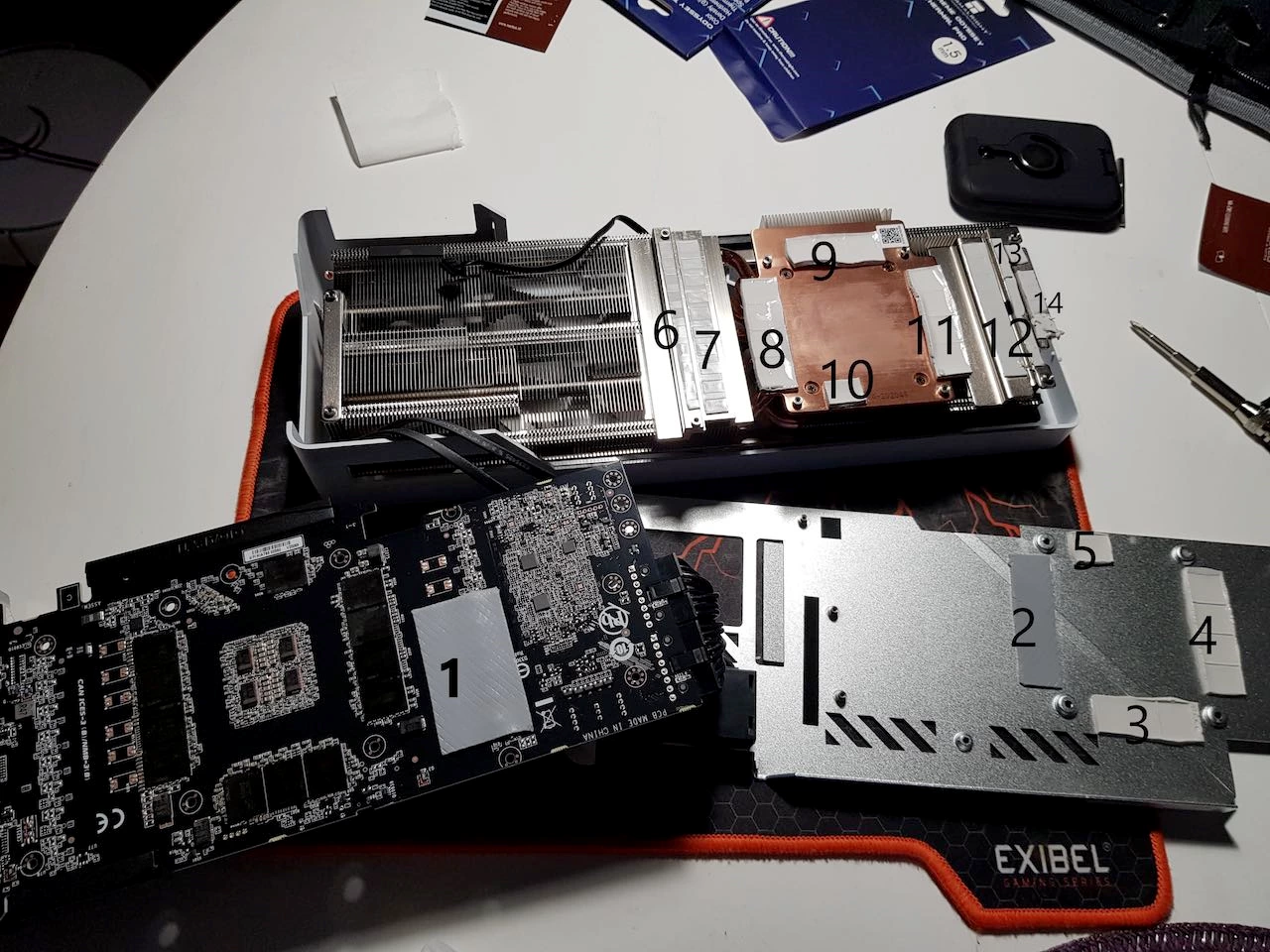

Detailed Component Thicknesses to Expect (Incorporating the "Numbered Pad" Information):
During disassembly, you will encounter various components. The following detailed thickness information (referring to common "numbered pad" locations in user guides) will help you select the right material from your purchased sheets:
- "Number 1" designated pad/area: This area requires 2mm thick pads. The original poster (OP) suggests you can "safely go with 3mm there too," offering an alternative for potentially better contact or if the gap is larger on your specific unit.
- "Number 2 to 5" designated pads/areas: These components use 2mm thick pads, but it's noted that 2.5mm also works fine, providing another option.
- "Number 6, 7, 12, 13, 14" designated pads/areas: All these require 1.5mm thick pads.
- "Number 8, 9, 10, 11" designated pads/areas: All these also require 1.5mm thick pads.
Reconciling and Purchasing Advice: To cover all these potential needs comprehensively, especially the options, you should consider having thermal pad sheets of the following thicknesses:
- 1.5mm: Essential for many components listed (Numbers 6-14) and for the "VRAM front" and "Pads on the side" as per the summary. At least one large sheet (e.g., 100x100x1.5mm) or two 85x45x1.5mm sheets would be advisable.
- 2.0mm: For "Number 1" and "Number 2-5" areas, and the primary recommendation for "VRAM back." An 85x45x2mm sheet is a good start.
- 2.5mm: An option for "Number 2-5" areas and "VRAM back." Consider an 85x45x2.5mm sheet if you want this option.
- 3.0mm: An option for the "Number 1" area. A smaller piece or sheet of 3mm might be needed if you choose this thicker option.
Crucial Action: Disassemble, Identify, and Measure! No specific length x width dimensions for each individual pad are provided. Users MUST meticulously measure all components (VRAM, VRMs, and all numbered pad locations) on their specific RTX 3090 Vision OC during disassembly. This will allow you to determine the exact L x W to cut from your sheets of the appropriate, verified thickness.
Why Choose Fehonda Thermal Pads?
For a high-end card requiring precise thermal management, quality pads are non-negotiable. Fehonda thermal pads offer:
- Premium Quality: High-grade materials for excellent thermal conductivity and durability.
- Enhanced Cooling: Engineered to optimize heat transfer, crucial for the demanding RTX 3090.
- Expertise: Fehonda specializes in thermal interface solutions.
- Versatile Solutions: Available in various thicknesses and sheet sizes to meet diverse needs.
Tips for Replacing Your GPU Thermal Pads (GIGABYTE RTX 3090 Vision OC)
This is an advanced procedure. If inexperienced, seek professional help or follow highly detailed, model-specific video guides.
- Preparation: Gather tools: Fehonda thermal pad sheets (1.5mm, 2mm, 2.5mm, and possibly 3mm), precision screwdrivers, sharp craft knife/scissors, ruler/calipers, non-metallic prying tools, isopropyl alcohol (90%+), lint-free cloths, and an anti-static wrist strap.
- Disassembly & Identification/Measurement: Carefully disassemble your card. Identify components corresponding to the "numbered" pads and VRAM/side areas. Meticulously measure the L x W of each. Critically assess the thickness required for "Number 1" (2mm or 3mm), "Number 2-5" (2mm or 2.5mm), and "VRAM back" (2mm or 2.5mm) based on existing pads or gaps.
- Remove Old Pads & Clean: Gently remove all old pads. Thoroughly clean all surfaces with isopropyl alcohol. Ensure complete dryness.
- Cut and Apply New Pads: Precisely cut new pads from the correct thickness sheets based on YOUR measurements. Apply carefully, ensuring full coverage and good contact after removing protective films.
- Reapply GPU Thermal Paste: Clean the GPU die and apply fresh, high-quality thermal paste.
- Reassembly: Carefully reassemble, ensuring even pressure. Do not overtighten.
- Testing: Install and monitor temperatures (especially VRAM junction) under load.
Disclaimer: GPU disassembly is risky and may void your warranty. Proceed with extreme caution.
Where to Purchase Fehonda Thermal Pads
For reliable Fehonda thermal pad sheets suitable for your GIGABYTE GeForce RTX 3090 Vision OC 24G, check online marketplaces like AliExpress:
FEHONDA Thermal Pad ===>>Click Here to Go to AliExpress and Buy Directly Now
Ensure you purchase sheets of 1.5mm, 2mm, 2.5mm, and potentially 3mm thickness from a reputable seller, in quantities sufficient for all pads based on your pre-measurement or generous estimation (e.g., the suggested 85x45mm sheets for VRAM/Side categories, plus extras for the numbered pad options).
Conclusion: Maintain Your RTX 3090 Vision OC's Peak Performance
Proper thermal pad replacement is vital for the GIGABYTE GeForce RTX 3090 Vision OC 24G to continue delivering its exceptional performance. By using high-quality Fehonda thermal pads of the correct, carefully verified thicknesses for all components and meticulously measuring and cutting each piece, you can ensure optimal heat dissipation. This leads to a cooler, more stable, and longer-lasting graphics card for your most demanding creative and gaming endeavors.
