Power battery system (hereinafter referred to as battery PACK) is mainly composed of batterymodule, mechanism system, electrical system, thermal management syste small size. Therefore,lithium-ion batteries have been widely used in consum and BMS battery management systemand other components. Power batteries for new energy vehicles are mainly represented bylithium-ion batteries. Compared with traditional batteries, Lithium-ion batteries do not containheavy metals such as lead and cadmium, and have the characteristics of high energy density, highoperating voltage, light weight andmer electronics, power batteries for new energy vehicles andenergy storage.
New energy battery pack solution
It's stable! Feihongda Provides ThermalConductivity Solutions for New EnergyBattery PACK

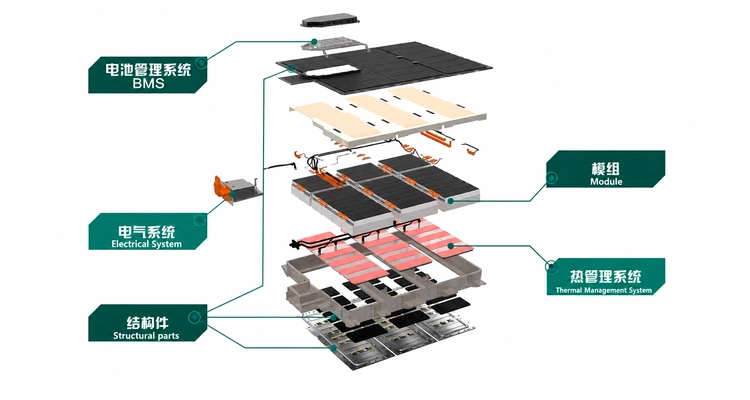

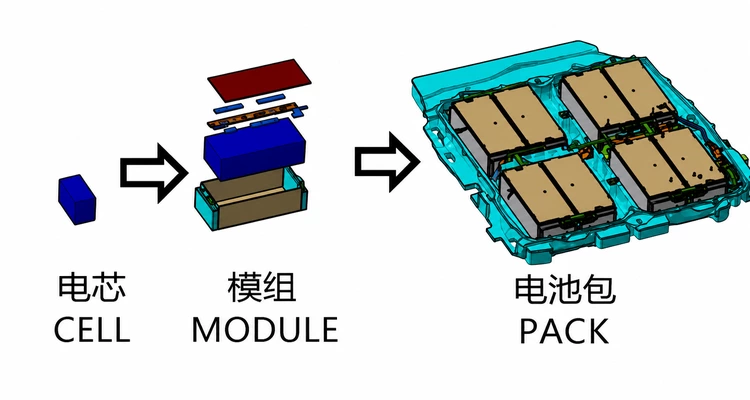

Cells >>> Battery PACK
· To assemble a battery module, a certain number of cells are connected in series and parallel.
· A complete battery pack, also known as a battery PACK, consists of a battery module, a thermal management system, a battery management system (BMS), and some structural components.
Battery Module
If the battery PACK is compared to a human body, then the module is the "heart", responsible for storing and releasing energy to provide power for the car. The module assembles single cells andconnects the cells into different series and parallel connections through a bus. It can be tightenedwith screws, resistance welding, ultrasonic welding, ultrasonic aluminum wire welding and laser welding.
Mechanism System
The mechanism system mainly consists of the battery PACK cover, tray, various metal brackets, end plates and bolts. It can be regarded as the skeleton of the battery PACK, which plays the rolesof support, resistance to mechanical impact, mechanical vibration and environmental protection (waterproof and dustproof).
Electrical System
The electrical system mainly consists of high-voltage jumperor high-voltage wiring harness, low-voltage wiring harnessand relays. The high-voltage harness can be regarded as theartery and blood vessel of the battery PACK and it cancontinuously deliver the power from the heart of the powerbattery system to each required component. The low-voltageharness can be regarded as the neural network of the batteryPACK, which transmits detection and control signals in realtime.
Thermal Management System

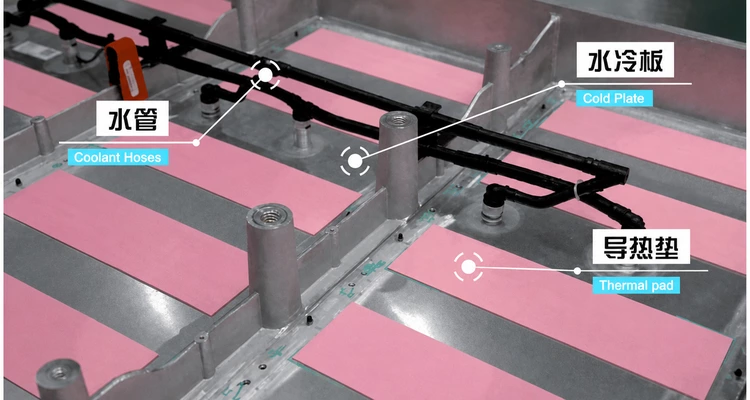

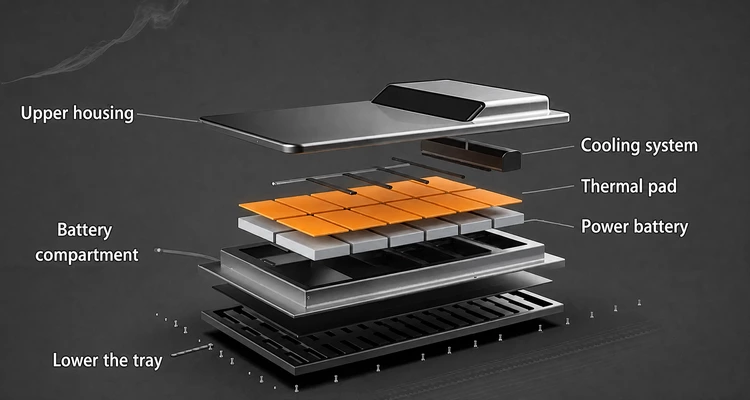

There are four main types of thermal management systems: air-cooled, water-cooled, liquid-cooled, and phase change materials. Taking the water-cooled system as an example, the thermalmanagement system mainly consists of cooling plate, cooling water pipe, heat-insulating pad andheat-conducting pad. The thermal management system can be regarded as the air conditioner ofthe battery pack.
BMS Battery Management System
The battery management system, which can be regarded as the brain of the battery, is mainly composed of CMU and BMU.

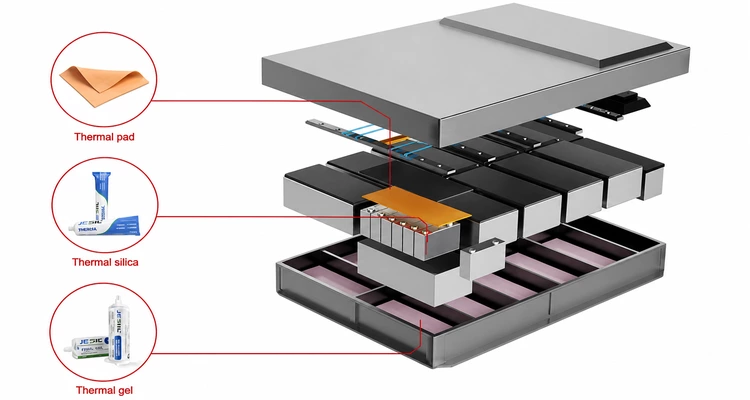

Battery PACK-Thermal Conductive Material Solutions
The application of thermally conductive materials in the field of new energy vehicles is a crucialtechnological advancement that plays a key role in improving the performance, safety andefficiency of vehicles. With the increasing global awareness of sustainable energy andenvironmental protection, the demand for new energy vehicles is growing rapidly. Against thisbackground, the application of thermally conductive materials has become an important aspect of enhancing the performance of new energy vehicles.
Thermally conductive materials are a class of materials that can effectively transfer heat energy,and they play a role in several key areas in new energy vehicles. In battery PACK, thermallyconductive materials can regulate the temperature of the battery to ensure that battery operatesat the optimal operating temperature and prevent overheating. It extends battery life andincreases energy density and charge/discharge efficiency. Therefore, it is crucial for battery safety.

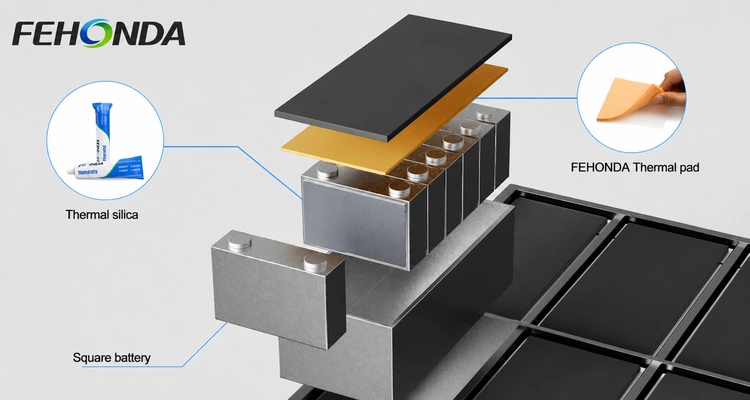

Thermal Pad
Thermal conductivity: 2~3 W/mk
Hardness: 25~35 Shore00
Product features: ultra-soft, high resilience, tear-resistant.
Role: thermal conductivity, shock absorption and cushioning.

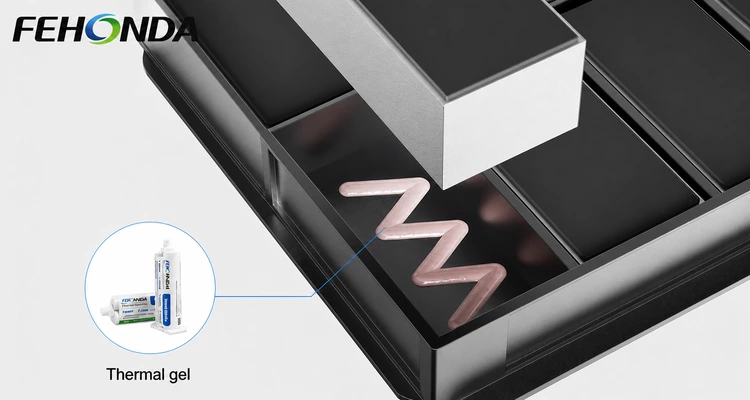

Thermal Gel
Thermal conductivity: 1~3.5 W/mk
Hardness: 40~75 Shore 00
Product features: utra-high compliance, Excellent wettability when used on low-stress interfaces.
Function: Used on the top and side walls of the shell, it can play a role in heat dissipation andfixed anti-vibration. It can also increase the thermal conductivity area of the heterogeneous parts and reduce the interface thermal resistance. In addition, it can be used automatically.
Thermal Conductive Silicone Rubber
Thermal conductivity: 1~2 W/mk
Product features: excellent resistance to hot and cold alternation, agingresistance, and high electrical insulation properties.
Function: When used between battery cells, it can play the role of heatconduction, insulation, bonding and sealing. The battery module is assembled bya certain number of battery cells in series and parallel.

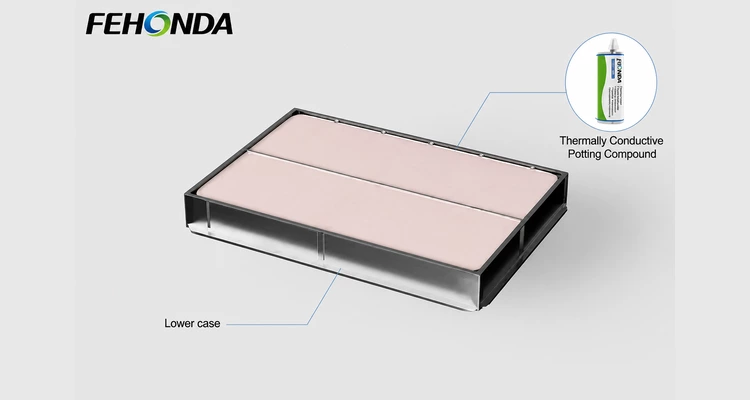

Thermally Conductive Potting Adhesive
Thermal conductivity: 0.6~2 W/mk
Product features: low density, high insulation strength, good fluidity, flame retardant.
Role: It is used between the power battery module and PACK liquid cooling plate,playing the role of heat conduction, bonding and sealing. It ensures that theinternal devices of new energy vehicles are firmly sealed during operation,prevents the internal devices from collision damage, and at the same time playsthe role of heat conduction and dissipation.
The application of thermally conductive materials in new energy vehicles is ofgreat significance in improving the overall performance and safety of thevehicles. With the continuous expansion of the new energy vehicle market andtechnological innovation, it is expected that the demand for thermally conductivematerials in this field will continue to increase. Thermally conductive materialswill provide strong support for the development of new energy vehicles.
If you have more questions about the application of thermal pad, thermal gel,thermal conductive silicone rubber, Thermally Conductive Potting Adhesive orneed further information, welcome to contact Fehonda team for detailed information.
